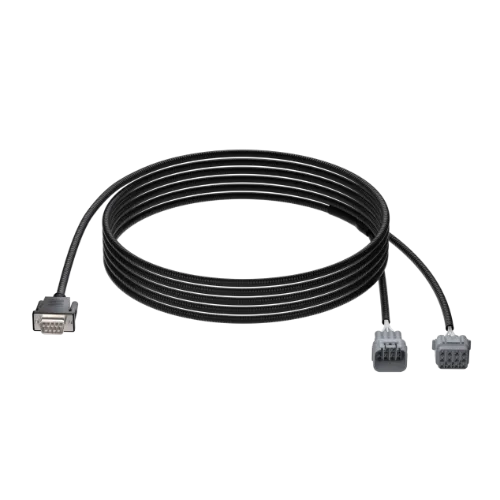

NMEA-0183 Output Cable
Send GNSS position and speed data to compatible farm equipment.
The FJD NMEA-0183 Output Cable transfers GNSS position and speed data between an autosteering system and compatible farm equipment. It supports several NMEA message types, adjustable baud rates, and output frequencies for different device communication requirements.
Best for: Farmers connecting an FJD autosteering system to an implement, display, or guidance system.
Talk To Farm Experts Call or Text (580) 394-0089
What the NMEA-0183 Output Cable does for you
Broad Message Support
Outputs GGA, VTG, GST, HDT, RMC, GSA, and ZDA data for use with compatible precision-ag equipment.
Adjustable Baud Rates
Choose from 2,400 to 115,200 bps to match the connected device. The default baud rate is 115,200 bps.
Adjustable Output Frequency
Set the output frequency from 1/60 Hz to 10 Hz, depending on the requirements of the connected equipment.
Implement Position Output
For sloped ground, the system can use vehicle measurements and IMU attitude data to calculate implement position from inertial navigation data.
Simple FJD Access
Access the NMEA settings through Menu > Applications > NMEA on the compatible FJD system.






Video: NMEA-0183 Output Cable in 30 seconds
The FJD NMEA-0183 Output Cable sends GPS position and speed from your auto steer to your other monitors.
What the video shows
- Sends GPS position and speed
- Feeds spreaders, seeders and monitors
- Seven message types
- Adjustable baud rate
- Set it up from the display menu
- Up to 10 updates a second
- Two-year warranty
- US support and service
What does the NMEA-0183 Output Cable do?
It sends GPS position and speed from your autosteer to other equipment such as spreaders, seeders and monitors.
What can I set on the NMEA output?
Seven message types, an adjustable baud rate and up to 10 updates a second, all from the display menu.
At a glance
| How to Access | Menu-Applications-NMEA |
|---|---|
| Baud Rate | 2,400 / 4,800 / 9,600 / 14,400 / 19,200 / 38,400 / 57,600 / 115,200 bps; default 115,200 bps |
| Output Message Types | GGA, VTG, GST, HDT, RMC, GSA, ZDA |
| Output Frequency | 1/60 Hz, 1/30 Hz, 1/10 Hz, 1/5 Hz, 1 Hz, 2 Hz, 5 Hz, 10 H |
Compatibility
Designed to connect FJD autosteering systems with compatible implements, displays, guidance systems, and other precision-ag equipment that accepts NMEA-0183 output.
Not sure it fits your equipment? Send us the make, model and year and we will tell you straight.
Common questions
What does this cable connect?
It connects an FJD autosteering system to compatible implements, displays, guidance systems, or other precision equipment. Call DST to confirm your specific equipment.
Which NMEA messages does it output?
It supports GGA, VTG, GST, HDT, RMC, GSA, and ZDA message types.
Can I change the baud rate or output frequency?
Yes. The available baud rates range from 2,400 to 115,200 bps, and the available output frequencies range from 1/60 Hz to 10 Hz. Call DST for help setting up your connected equipment.
