AG1 GPS Guidance System for Tractors

Practical GPS guidance for tractors and mixed-fleet farms

The FJD AG1 helps operators stay on planned paths without adding a full autosteering system. It uses RTK, PPP, and SBAS positioning, with accuracy from decimeter-level down to 2.5 cm with RTK. Start with the Standard system, then add ISOBUS or retrofit capabilities as your equipment needs grow.

Best for: Farmers who want affordable manual guidance and a path to ISOBUS control.

Talk To Farm Experts Call or Text (580) 394-0089

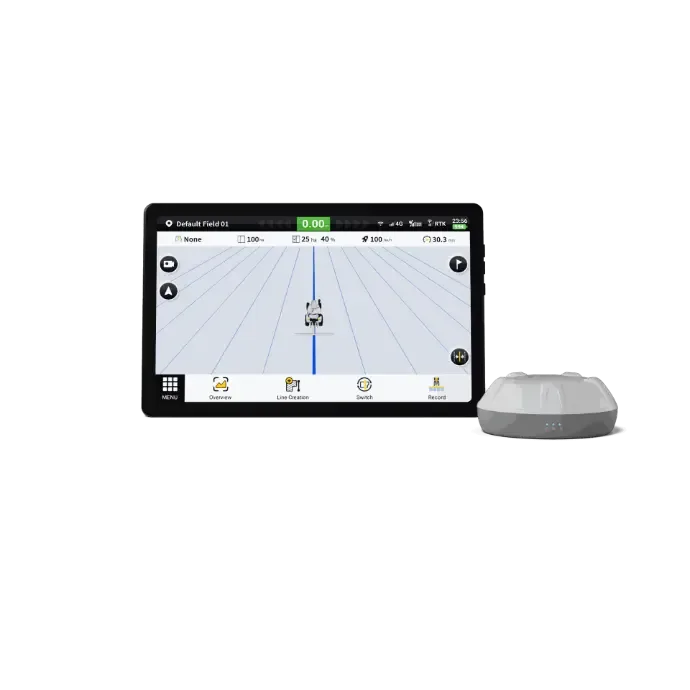

AG1 display and roof GNSS receiver

What the FJD AG1 does for you

Multiple Positioning Options

The AG1 works with RTK, PPP, and SBAS signals. Built-in algorithms provide sub-meter positioning in some signal-challenging areas, while RTK can provide accuracy up to 2.5 cm.

Manual Field Guidance

Use straight, curved, A+, pivot, and line-group guidance lines. The system also supports slope work, diagonal plowing, terraces, small fields, and hilly ground.

Wireless Installation

The GNSS receiver and display connect wirelessly through Wi-Fi. The basic setup uses a guidance terminal and GNSS receiver, which helps reduce wiring work.

Optional ISOBUS Control

The AG1 ISOBUS Kit adds VT, TC, and AUX functions for monitoring and controlling compatible implements from different brands through one terminal.

Sprayer Retrofit Option

The AG1 VCU Kit can retrofit a non-ISOBUS sprayer for use with ISOBUS systems. This adds automatic control and task execution without replacing the sprayer.

Field Data Connection

The AG1 can connect with FJDynamics FieldFusion to synchronize operational data and carry out planned tasks such as setting boundaries and guidance paths.

Which tractors does the FJD AG1 go on?

Pick your tractor brand for the model-by-model fit, or send us the make, model and year.

The AG1 up close

The AG1 is a display and a roof receiver. It shows you the line and you do the steering. Deep Sand Technology is an authorized FJDynamics dealer. We sell, set up and support the FJD AG1 for farms in all 50 states.

AG1 display showing a guidance line, with the roof receiver beside it and a wireless symbol between them
AG1: display and receiverThe receiver sends position to the display wirelessly, so there is no cable to run between them. Each one still needs power.

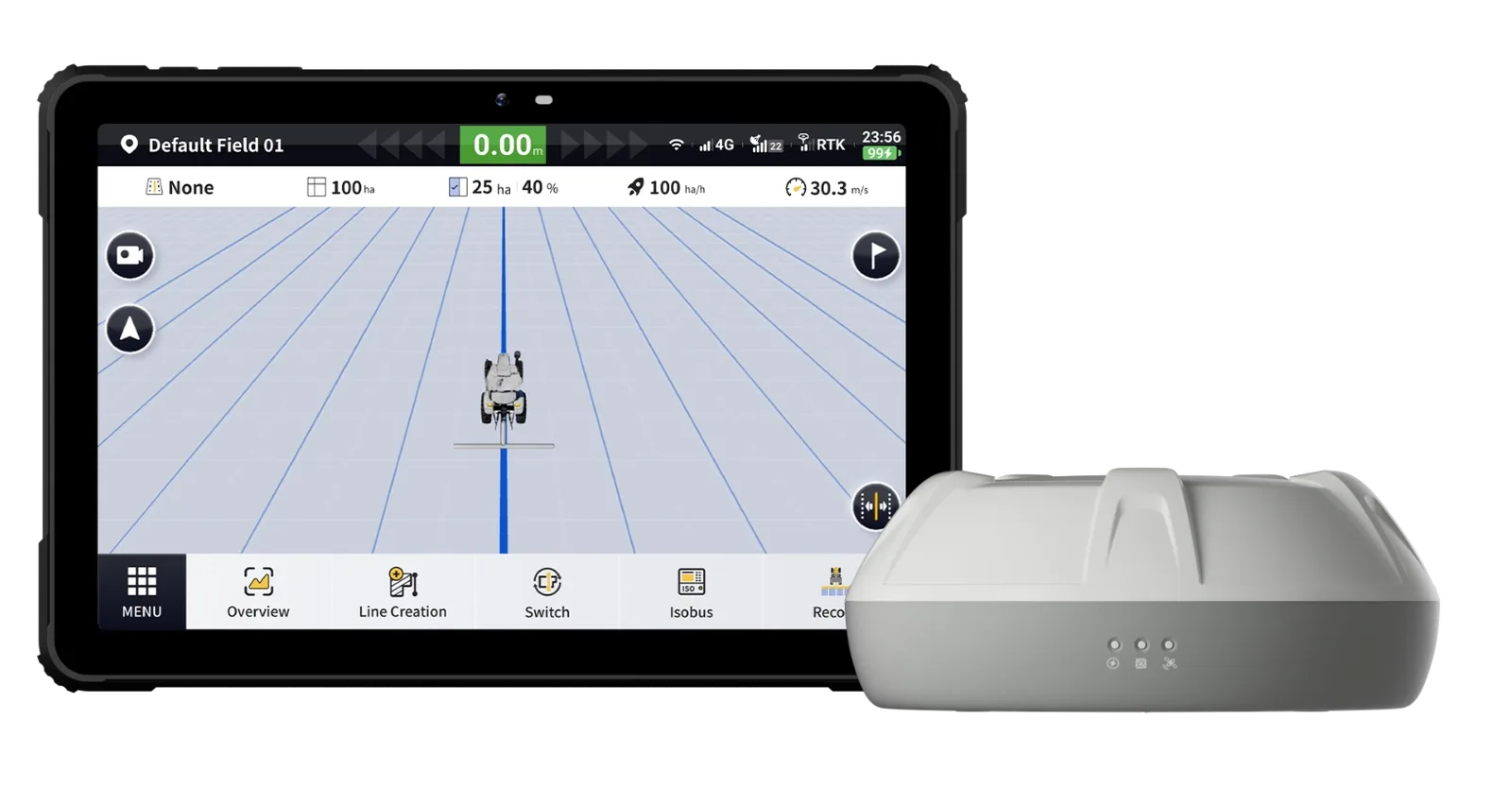

AG1 display and white roof GNSS receiver
The two piecesA touchscreen for the cab and a receiver for the roof.
Operator steering a tractor by hand while the AG1 display in the cab shows the guidance screen
In the cabYou steer. The screen shows the line and how far off it you are.
Field views of straight, curved, pivot and grouped guidance lines
Guidance linesStraight, curve, A+, pivot and line group.
Tractor in a field with SBAS, PPP and RTK correction signals shown overhead
Corrections it can useSBAS, PPP or RTK. The receiver is rated to about 1 in (2.5 cm) with RTK. You still do the steering.
AG1 wiring diagram: receiver, display, battery, power cable, receiver cable and cab charger
How it wires upA power cable from the battery, a cable to the receiver and a cab charger for the display.
AG1 display and receiver with the ISOBUS connection cable
With the optional ISOBUS kitThe ISOBUS kit is a separate add-on that lets the display run a compatible ISOBUS implement. It does not add steering.
Tractor and planter in the field with the planter's ISOBUS screen shown on the AG1 display
ISOBUS implement screenWith the ISOBUS kit, a compatible implement's screen shows on the AG1 display.

Tap any picture to see it full size.


What comes in the AG1 kit

The AG1 kit is a display and a roof receiver, with the mounts, cables and chargers to put them in your cab.

AG1 display on the bench, screen off

Cab touchscreen

Shows your line and how far off it you are. You steer the tractor yourself.

AG1 display and roof GNSS receiver

Roof GNSS receiver

Locates the tractor and sends its position to the display wirelessly. It still needs power.

Line drawing of the cab charger cable, main power cable, receiver cable and cab charger

Power and charging cables

Main power cable, receiver cable, cab charger cable and USB-C charging cable, one of each.

Display mounts

A holder and a cab bracket that hold the screen in place.

Receiver mount

A roof bracket that holds the receiver on the cab roof.

Cab and wall chargers

One cab charger and one wall charger, so you can power the display in the tractor or charge it at an outlet.

Mounting hardware and paperwork

Adhesive pads, bolts, screws, U-bolts, cable ties and waterproof bags, plus the manual and warranty card.

What changes with your tractor

Mounting points and power connections depend on the cab and roof. Tell us your tractor and we will go over how it mounts.

Good to know

AG1 Standard does not turn the wheel. The ISOBUS and sprayer control kits are separate and do not add steering. If you want hands-free steering later, ask us which steering hardware and electronics fit your tractor and whether anything from your AG1 can be reused.


Video: AG1 in 30 seconds

The FJD AG1 is a GPS guidance system for tractors. It shows your line on the display while you steer.

What the video shows

  • Shows your line while you steer
  • Straight, curved and pivot lines
  • Wireless receiver and display
  • Runs on WAAS or RTK
  • Add ISOBUS control later
  • Display and receiver
  • Two-year warranty
  • One-year buy-back guarantee

Does the AG1 steer the tractor?

No. The AG1 shows your line on the display and you steer. For hands-free steering, look at the AT2 auto steer systems.

What lines and signals does the AG1 use?

Straight, curved and pivot lines, on WAAS or RTK. The receiver and display are wireless, and you can add ISOBUS control later.

Watch on YouTube  |  More videos from Deep Sand Tech


GPS guidance or auto steer?

The AG1 is a GPS guidance system. It draws your guidance line on the display and shows you how far off it you are, and you steer. The receiver runs WAAS out of the box and takes RTK for the same 2.5 cm line our autosteer kits hold. Farmers run it for spraying, spreading, tillage and hay where a straight pass matters and you do not mind steering.

Auto steer is the next step: the same line, but a motor or valve turns the wheels for you. If you spend your days planting, strip-tilling or spraying between rows, start with how auto steer works and the autosteer kits. If you want guidance now and autosteer later, the AG1 is a sensible first step, and we will tell you straight which way to go for your tractor at (580) 394-0089.

AG1 specifications

Display

Screen10.36 in, 2000 x 1200 pixels
Touch10-point capacitive
SystemAndroid 13; 8-core 2.0 GHz
Memory4 GB RAM, 64 GB storage

Receiver and accuracy

RTK positioningUp to 1 in (2.5 cm) with RTK; you still steer
CorrectionsRTK, PPP and SBAS
Satellite bandsGPS L1/L2/L5; BeiDou B1/B2/B3; GLONASS L1/L2; SBAS
Receiver size6.38 x 2.54 in (162 x 64.5 mm)

Power

Machine supply12-24 V DC
Receiver input9-36 V DC
Tablet charger5 V DC, 2 A
Tablet battery6,000 mAh, 8 to 10 hours

Weather and temperature

Receiver ratingIP67
Operating temperature-4 to 158 deg F (-20 to 70 deg C)
Storage temperature-40 to 185 deg F (-40 to 85 deg C)

Connections

Receiver linkWi-Fi and Bluetooth
Tablet portsUSB-C (USB 2.0), SIM/card slots and 3.5 mm headset jack

Software

Steering modeManual; follow the line on screen
Guidance linesStraight, curve, A+, pivot and line group

Not sure which numbers matter for your tractor? Ask us and we will go over them with you.


At a glance

SteeringYou steer using the line on screen
Display10.36 in
RTK positioningUp to 1 in (2.5 cm) with RTK
Correction sourcesRTK, PPP and SBAS
Receiver linkWireless to display; separate power
Guidance linesStraight, curve, A+, pivot and line group

Compatibility

The AG1 is designed for tractors and agricultural implements. The Standard system provides manual guidance. The ISOBUS Kit supports ISOBUS functions, and the VCU Kit is intended to retrofit a non-ISOBUS sprayer. Contact DST to confirm your tractor, display, implement, and connection requirements.

Not sure it fits your equipment? Send us the make, model and year and we will tell you straight.


Common questions

Does the AG1 steer the tractor automatically?

No. The AG1 is a guidance system: it shows you the line and you steer. If you want the tractor to steer itself, ask us about an autosteering kit.

Can I use the AG1 without RTK?

Yes. The system supports PPP and SBAS as well as RTK.

Can the AG1 add ISOBUS to older equipment?

The AG1 ISOBUS Kit adds ISOBUS functionality, and the VCU Kit is designed to retrofit a non-ISOBUS sprayer. Call DST to check whether your specific equipment is supported.
