AT2 Max Autosteering System

More screen and control for precision tractor guidance.

The FJD AT2 Max combines an electric steering motor kit, RTK guidance, and a 12.1-inch display in one tractor guidance system. It supports straight, curved, pivot, and mixed guidance lines, plus automatic U-turns and ISOBUS UT control. If RTK drops out, the system can switch to PPP and return to RTK when available.

Best for: Farmers who want automatic steering, a larger display, and ISOBUS implement control.

For sale and in stock. Ships to the farm anywhere in the US, set up with you on the phone. Two-year warranty. Ask for a quote or call or text (580) 394-0089.

Talk To Farm Experts Call or Text (580) 394-0089
AT2 Max Autosteering System

What the AT2 Max does for you

12.1-Inch Display

The larger screen gives you a clearer view of field guidance and machine information. Split-screen mode lets you keep multiple information windows visible.

Automatic U-Turns

Smart U-turn plans turning paths at the end of rows. This can reduce repetitive manual steering during headland work.

RTK and PPP Support

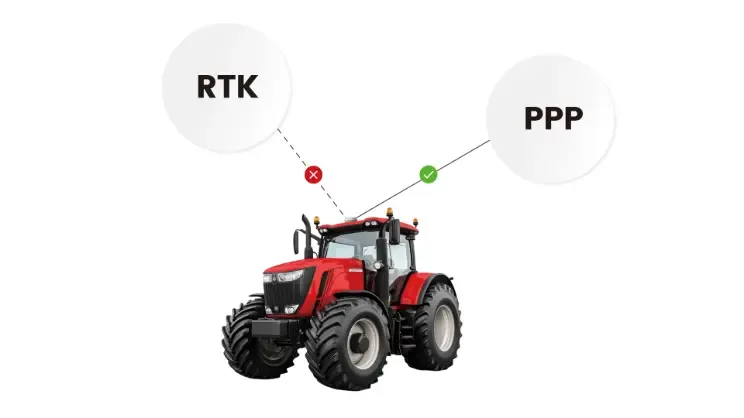

The AT2 Max uses RTK guidance and can switch to PPP when RTK is unavailable. It switches back to RTK when the signal returns.

ISOBUS UT Control

The system can display ISOBUS UT in full screen and show up to 24 sections at the same time.

Flexible Guidance Lines

Use straight, curved, pivot, or mixed guidance lines. The system also supports guidance-line and vehicle-position translation, field-boundary headlands, and inflection points for diagonal harrowing.

Camera and Easy Control

A wired camera with infrared night vision can help you monitor the implement and surrounding area. Easy Control can be used to turn autosteering on or off and remotely control common functions.

Which tractors does the AT2 Max go on?

Pick your tractor brand for the model-by-model fit, or send us the make, model and year.

The AT2 Max up close

The AT2 Max is a steering wheel with the motor built in, a 12.1-inch display and a roof receiver. Deep Sand Technology is an authorized FJDynamics dealer. We sell, set up and support the FJD AT2 Max for farms in all 50 states.

AT2 Max steering wheel with built-in motor, white roof GNSS receiver and 12.1-inch display
The AT2 Max kit: wheel, receiver and displayThe steering wheel with its motor, the roof receiver and the 12.1-inch display.
Front of the AT2 Max 12.1-inch display with the guidance screen on
The 12.1-inch displayA 12.1-inch touchscreen at 500 nits, sealed to IP67. That is 46% more screen area than the 10.1-inch AT2.
AT2 Max split screen with guidance on one side and the ISOBUS implement screen on the other, with a row of 24 sections along the bottom
ISOBUS next to your guidanceRun the implement screen beside the guidance map, with up to 24 sections shown on screen at once. Needs the ISOBUS cable and a compatible implement.
AT2 Max implement screen with a small guidance map window in the corner
Mini map windowKeep a small guidance map on screen while the implement screen fills the rest.
Diagrams of guidance line types, tramlines, diagonal harrowing, U-turns and headlands
Lines for every fieldStraight, curve, pivot and mixed lines, tramlines, headlands and diagonal harrowing. Smart U-turn is an optional activation.
Wired camera with night-vision lights in its mounting bracket
Optional wired cameraAdd a wired camera with night vision and watch the implement from the seat. The Max has one wired camera input.
Graphic showing AT2, AS2 and AH2 kits with an arrow to the AT2 Max
Upgrade pathAlready running an AT2, AS2 or AH2? Ask us about moving up to the AT2 Max.

Tap any picture to see it full size.


What comes in the AT2 Max kit

Here is what we ship in an AT2 Max kit.

AT2 Max kit: steering wheel with motor, receiver and display

Steering motor and wheel

Replaces your steering wheel with a leather-wrapped wheel. The motor inside turns the column so the tractor steers itself. Works on 12 or 24 volt tractors.

AT2 Max 12.1-inch display

12.1-inch display

The touchscreen you run steering, split screen and ISOBUS from. 1280 x 800, 500 nits, sealed to IP67.

Ball-mount display bracket with its base plates

Display mount

Terminal mounting bracket that holds the display on the armrest or a cab rail.

White FJDynamics roof GNSS receiver

GNSS receiver

The globe on the cab roof. It reads satellite position and RTK corrections and has terrain compensation built in to help make up for tractor tilt on side hills.

Wheel angle sensor on its bracket with its lead

Wheel angle sensor and leads

The sensor mounts on the front axle and tells the system how far the wheels are turned. It comes with its harness and an extension lead.

GNSS receiver harness, coiled

Harness set

Main wiring harness, spare main harness, GNSS receiver harness and power harness, one of each. Power comes straight off the tractor battery.

Roof brackets for the GNSS receiver

Roof mount set

Two antenna brackets with bolts, self-drilling screws and adhesive pads to fix the receiver on the cab roof.

Mounting hardware and paperwork

Screws, washers, nameplate, 20 cable ties, certificate, warranty card and user manual.

What changes with your tractor

The spline adapter and motor bracket are matched to your tractor's steering column and come in our adapter kit. The angle sensor bracket is picked for your front axle.

What we add, and your options

Every kit we ship also comes with a SIM card with a one-year data plan, RTK activation before it ships, and setup help by phone. Options: wired camera with night vision, Wi-Fi camera, Bluetooth remote (Easy Control), foot switch, ISOBUS cable and NMEA cable. Smart U-turn, multi-machine sync and advanced ISOBUS functions are optional activations.

RTK corrections

We offer both radio and NTRIP RTK. Every system ships set up on NTRIP RTK.


Video: AT2 Max in 30 seconds

The FJD AT2 Max is an all-in-one auto steer system for tractors, with a 12-inch display and ISOBUS section and rate control.

What the video shows

  • 1-inch accuracy
  • Terrain compensation
  • Auto turn available
  • 12-inch display
  • 46% more visible area than the AT2
  • 170% more computing power than the AT2
  • ISOBUS implement control
  • Section and rate control
  • Multi-machine sync
  • Two-year warranty
  • One-year buy-back guarantee

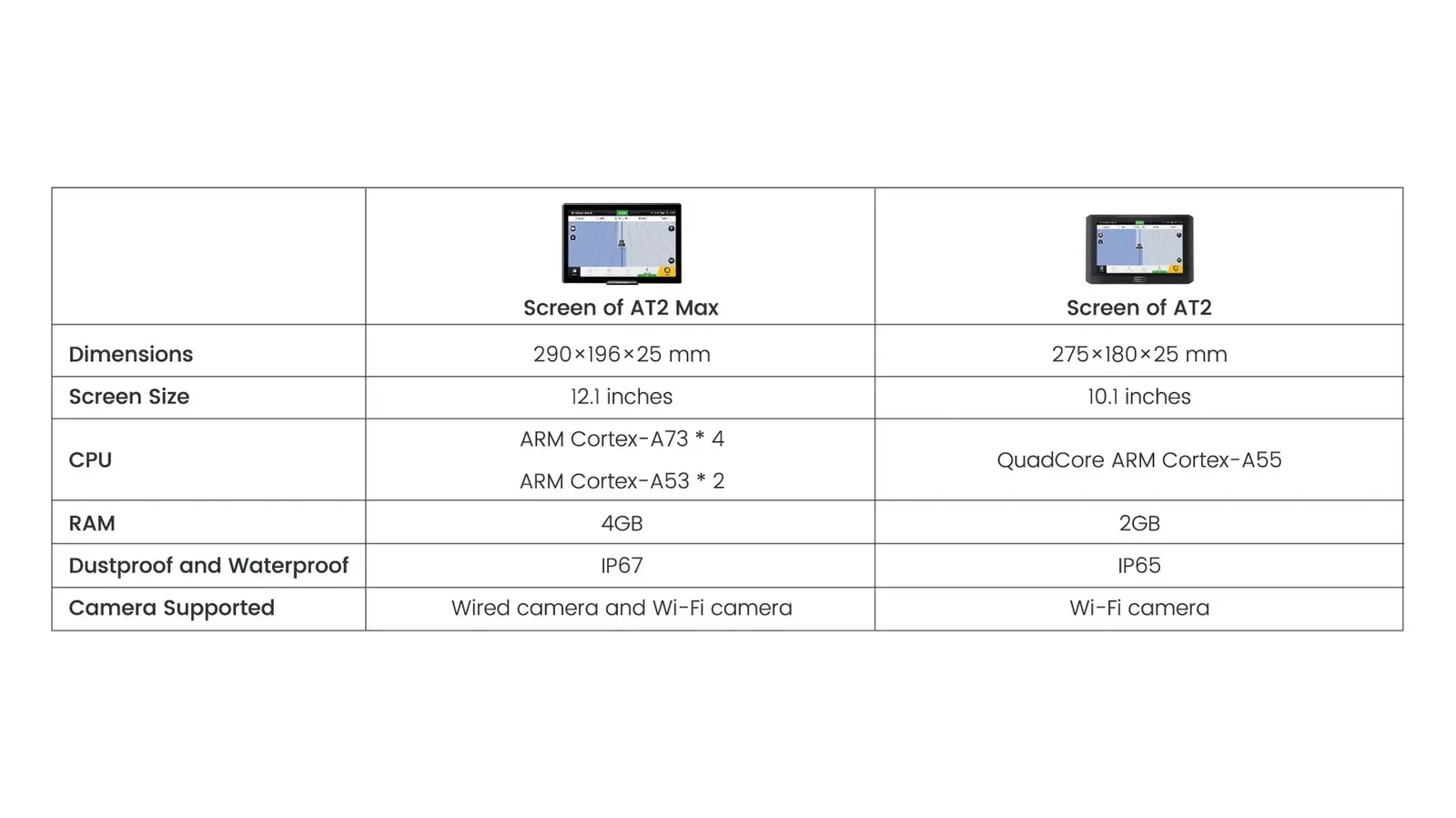

What does the AT2 Max add over the AT2?

A 12-inch display with 46% more visible area and 170% more computing power than the AT2. It also has multi-machine sync.

Can the AT2 Max control my implement?

Yes. It supports ISOBUS implement control with section and rate control. Call or text us with your implement and we will confirm what it needs.

Watch on YouTube  |  More videos from Deep Sand Tech


AT2 Max specifications

Display

Screen12.1 in touchscreen, 1280 x 800
Brightness500 nits
Visible area46% more than the AT2
Memory4 GB RAM, 16 GB storage
ProcessorSix-core ARM (4 x Cortex-A73, 2 x Cortex-A53)
Size11.4 x 7.7 x 1.0 in (290 x 196 x 25 mm)
Split screenUp to 4 windows plus a mini map window

Receiver and accuracy

SatellitesGPS, GLONASS, BeiDou, Galileo, multi-band
CorrectionsRTK, PPP and SBAS
RTK setupShips set up on NTRIP RTK; radio RTK also offered
RTK dropoutPPP fallback on supported setups
Working speed0.06 to 16 mph (0.1 to 26 km/h)
Terrain compensationYes, built into the receiver
Roll and pitch0.2 deg (IMU in the receiver)
Receiver size6.4 x 2.5 in (162 x 64.5 mm)

Steering motor

Voltage12 or 24 V
Torque11.1 ft-lb (15 Nm) at 12 V, 14.8 ft-lb (20 Nm) at 24 V
Seal ratingIP65

Power

Display and receiver9 to 36 V DC
Receiver drawUnder 300 mA

Weather and temperature

Working-4 to 158 deg F (-20 to 70 C)
Storage-40 to 185 deg F (-40 to 85 C)
Humidity0 to 95% at 104 deg F (40 C), non-condensing
Seal ratingsDisplay IP67, receiver IP66, motor IP65

Connections

Wi-Fi2.4 GHz
Cameras1 wired camera input, plus Wi-Fi camera
ISOBUSFull-screen UT; shows up to 24 sections on screen at once

Software

Guidance linesStraight, curve, pivot, mixed lines, tramlines, boundary headlands, diagonal harrowing
Automatic U-turnSmart U-turn, optional activation
UpdatesOver-the-air updates
Path AssistSupported on compatible AT2 Max setups
UpgradesUpgrade packages from the AT2, AS2 and AH2; ask us

Not sure which numbers matter for your tractor? Ask us and we will go over them with you.

AT2 Lite, AT2, AT2 Max and AT2 Ultra side by side

Slide the chart sideways to see every column.

AT2 LiteAT2AT2 MaxAT2 Ultra
Screen10 in tablet10.1 in12.1 in16 in
Resolution1280 x 8001280 x 8001280 x 8001920 x 1200
Memory (RAM)4 GB2 GB or 4 GB, by version4 GB4 GB
Split-screen windowsAsk usUp to 3Up to 4Up to 5
Wired camera inputsAsk usNewer versions12
ISOBUS implement controlNot offered on this kitYes, with ISOBUS cableYes, with ISOBUS cableYes
TC-GEO, TC-SC, AUX-NNot offered on this kitOptional upgradeOptional upgradeIncluded
Automatic U-turnAsk usOptional upgradeOptional upgradeIncluded
Multi-machine syncAsk usOptional upgradeOptional upgradeIncluded
Steer-ready CAN and hydraulicAsk usOptional upgradeOptional upgradeSoftware unlocked; machine hardware separate

Optional upgrade means a function we can add and activate for you. Ask us which ones fit your machine.


At a glance

Display12.1 in touchscreen, 46% more visible area than the AT2
Memory4 GB RAM, double the original AT2
ISOBUSFull-screen UT, shows up to 24 sections on screen at once
PositioningRTK, with PPP fallback on supported setups
Working speed0.06 to 16 mph (0.1 to 26 km/h)
Display sealIP67
UpdatesOver the air

Compatibility

The AT2 Max is designed for tractors and supports ISOBUS implements. If you already run an AT2, AS2 or AH2, ask us about upgrading to the AT2 Max. We check fitment, steering hardware and implement compatibility for your tractor before you order.

Not sure it fits your equipment? Send us the make, model and year and we will tell you straight.


Common questions

Is the AT2 Max a steering motor kit for a Kubota, Case IH or John Deere tractor?

Yes. The AT2 Max is an electric steering wheel motor kit. The motor bolts to the steering column with a bracket and spline matched to your tractor and turns the wheel; the receiver on the roof and the display do the rest. We put it on Kubota, Case IH, John Deere, New Holland, Ford, Massey Ferguson, Fendt, Versatile and anything else with power steering, steer-ready or not. Pick your brand on this page for the model-by-model fit, or text (580) 394-0089 with the make, model and year.

What guidance patterns does the AT2 Max support?

It supports straight, curved, pivot, and mixed guidance lines. It can also work with field boundaries, headlands, and diagonal harrowing layouts.

What happens if the RTK signal drops out?

The AT2 Max can switch to PPP for positioning and then return to RTK when RTK becomes available again.

Can the AT2 Max run my ISOBUS implement?

The system supports ISOBUS UT and can display up to 24 sections. Call DST to confirm compatibility with your specific tractor and implement.
