AT2 Lite Autosteering System

Serving the United States

Created by Farmers for Farmers

Buy-Back Guarantee

Two-Year Warranty

Precision Products for New and Older Equipment

AT2 Lite Autosteering System
AT2 Lite Autosteering System

Autosteering & Guidance

AT2 Lite Autosteering System

RTK steering guidance for a simpler start in precision farming

The FJD AT2 Lite is an electric steering motor kit: the motor bolts to the steering column and turns the wheel, so it adds RTK-level steering accuracy to any tractor with power steering, no factory autosteer needed. It is a steering-only system with wireless tablet-to-GNSS communication, simple controls, and support for a wide range of guidance patterns. DST can help US farmers with setup and remote installation support by phone.

Best for: Farmers who want an affordable, easy-to-install entry into tractor autosteering.

For sale and in stock. Ships to the farm anywhere in the US, set up with you on the phone. Two-year warranty. Ask for a quote or call or text (580) 394-0089.

Talk To Farm Experts Call or Text (580) 394-0089
AT2 Lite Autosteering System

What the FJD AT2 Lite does for you

RTK-Level Steering Accuracy

AT2 Lite provides ±2.5 cm RTK positioning accuracy for high-precision field work. It can autosteer at speeds as low as 0.15 km/h.

Simple Wireless Setup

The FJD Link connection reduces cabling between the tablet and GNSS receiver. The system can be installed through one or two connection points on compatible machinery.

Easy Guidance Controls

The system supports nearly 20 guidance patterns, including shifted guidance lines, tramlines, AccessPath, and single-line guidance. One-tap controls and automatic parameter adjustment help reduce setup time.

Smooth Line Entry

Smart Turn-In helps the tractor enter a guidance line at angles up to 90 degrees. This supports smoother path changes on field operations.

Lightweight Rugged Tablet

The Android-based tablet weighs less than 0.8 kg. Its lighter design makes it easier to handle during installation and daily use.

RTK Signal Continuity

When RTK is unavailable, ALS can maintain navigation continuity for 20 minutes. The system can then move to PPP mode and return to RTK when the signal reconnects.

Which tractors does the FJD AT2 Lite go on?

Pick your tractor brand for the model-by-model fit, or send us the make, model and year.

The AT2 Lite up close

The AT2 Lite is a steering wheel with the motor built in, a 10-inch tablet and a roof receiver. It adds autosteering and guidance lines. Deep Sand Technology is an authorized FJDynamics dealer. We sell, set up and support the FJD AT2 Lite for farms in all 50 states.

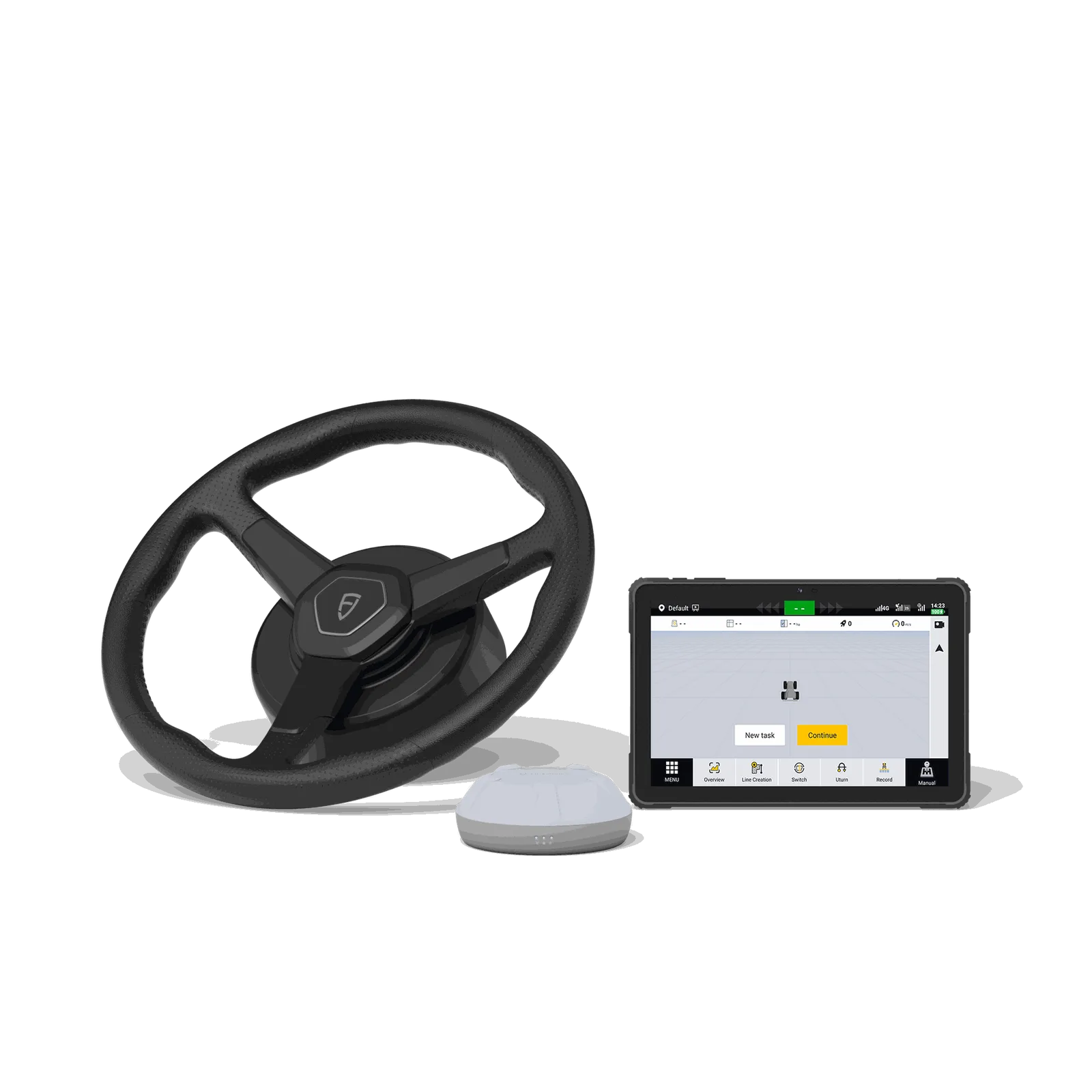

AT2 Lite steering wheel with built-in motor, 10-inch tablet and white roof GNSS receiver
The AT2 Lite kit: wheel, tablet and receiverThe steering wheel with its motor, the 10-inch tablet and the receiver for the cab roof.
AT2 Lite tablet showing the guidance screen with the off-line distance enlarged
The 10-inch tabletWhere you set lines and watch your pass. The number at the top is how far you are off the line.
White roof GNSS receiver sending position to the AT2 Lite tablet
Roof receiverThe receiver on the cab roof reads satellite position and corrections and passes them to the tablet.
AT2 Lite tablet with the words Lighter than 0.8 kg
Light tabletThe tablet weighs under 1.8 lb (0.8 kg), so it is easy to carry from one tractor to the next.

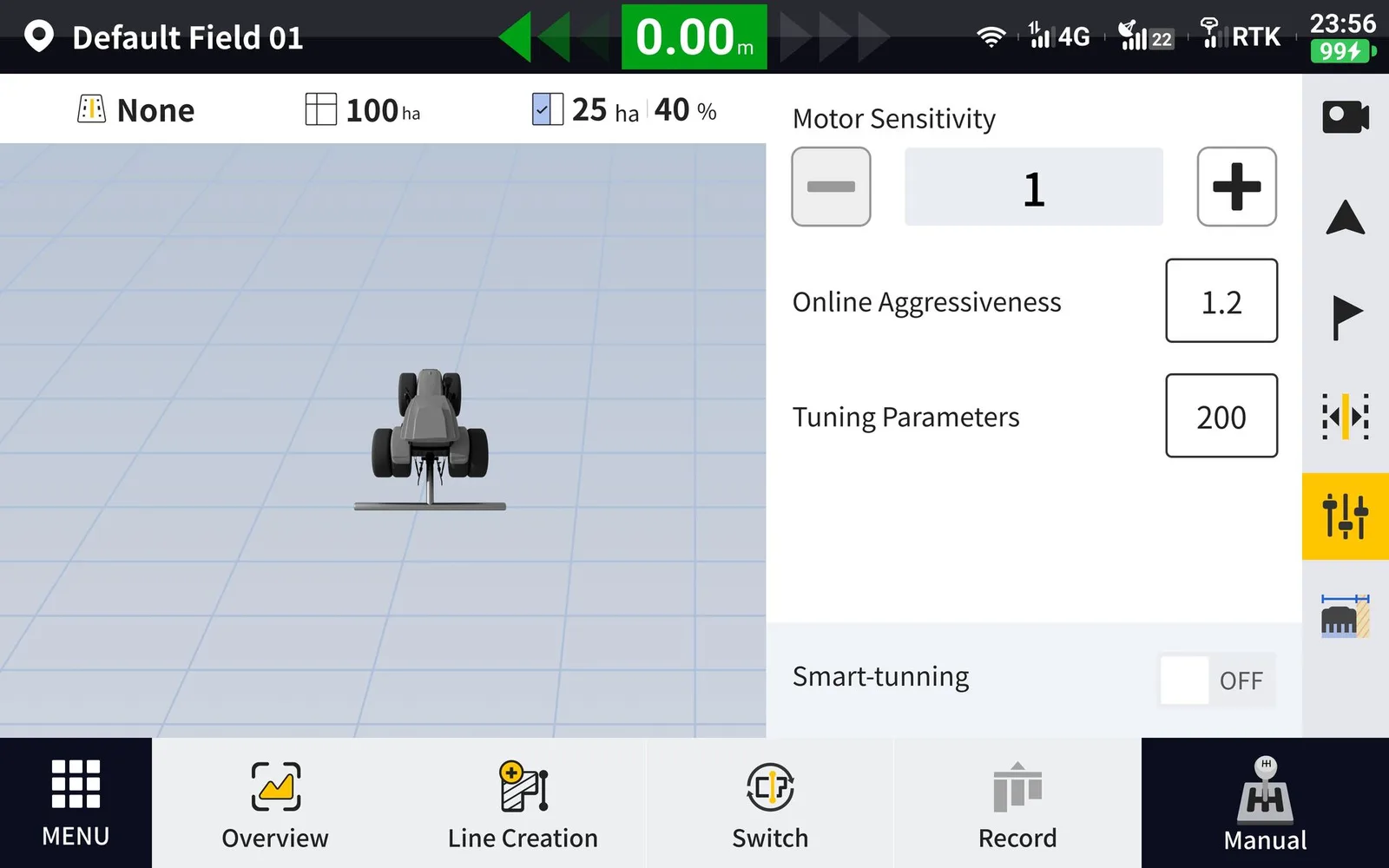

AT2 Lite steering settings screen with motor sensitivity and tuning values
Steering settingsPick your tractor profile and let it tune itself, then adjust how quick the steering reacts if you want it tighter.
Diagram of a tractor coming onto a straight guidance line from different angles
Getting on the lineSmart Turn-In picks up the line even when you come at it at up to 90 degrees. It joins curve lines the same way.
Tractor with RTK and PPP correction signals shown above it
RTK, with PPP behind itRuns on RTK, rated plus or minus 1 in (2.5 cm). It can also use PPP and SBAS corrections.

Tap any picture to see it full size.


What comes in the AT2 Lite kit

Here is what we ship in an AT2 Lite kit.

AT2 Lite kit: steering wheel with motor, tablet and receiver

Steering motor and wheel

Replaces your steering wheel. The motor inside turns the column so the tractor steers itself. Works on 12 or 24 volt tractors and is sealed to IP65.

AT2 Lite 10-inch tablet

10-inch rugged tablet

The Android touchscreen you run steering and guidance lines from. 1280 x 800 screen, under 1.8 lb (0.8 kg).

Roof GNSS receiver next to the tablet

GNSS receiver

The globe on the cab roof. It reads satellite position and RTK corrections and has terrain compensation built in to help make up for tractor tilt on side hills.

Tablet mount and USB-C cable

Two tablet brackets that hold the screen on the armrest or a cab rail, plus the USB-C cable for the tablet.

Wheel angle sensor

Mounts on the front axle and tells the system how far the wheels are turned. It is matched to the receiver in the same kit, so keep the pair together.

Harness set

Main wiring harness, main power cable and GNSS receiver harness, one of each. They run power from the battery and tie the motor and receiver together.

Roof mount set

Two antenna brackets, two adhesive strips and four self-drilling screws to fix the receiver on the cab roof.

Mounting hardware and paperwork

Screws, washers, nameplate, 20 cable ties, certificate, warranty card and user manual.

What changes with your tractor

The spline adapter and motor bracket are matched to your tractor's steering column and come in our adapter kit. The bracket for the wheel angle sensor is also picked for your front axle.

What we add, and your options

Every kit we ship also comes with a SIM card with a one-year data plan, RTK activation before it ships, and setup help by phone. Option: a Bluetooth engage switch on compatible kits. The AT2 Lite does not take a wired foot pedal.

RTK corrections

We offer both radio and NTRIP RTK. Every system ships set up on NTRIP RTK.


Video: AT2 Lite in 30 seconds

The FJD AT2 Lite is the entry-level auto steer system for tractors: a simple way into GPS steering, built around a 10-inch rugged tablet.

What the video shows

  • 1-inch accuracy
  • Terrain compensation
  • Auto turn available
  • Quick install
  • 10-inch rugged tablet
  • Wireless connection
  • Two-year warranty
  • One-year buy-back guarantee

Who is the AT2 Lite for?

Farmers who want straightforward autosteer on a tractor. It holds 1-inch accuracy with terrain compensation, and auto turn is available. If you want ISOBUS implement control with section and rate control, look at the AT2 or AT2 Max.

What warranty comes with the AT2 Lite?

A two-year warranty and a one-year buy-back guarantee.

Watch on YouTube  |  More videos from Deep Sand Tech


AT2 Lite specifications

Display

Screen10 in touchscreen, 1280 x 800
Memory4 GB RAM, 64 GB storage
SystemAndroid
WeightUnder 1.8 lb (0.8 kg)

Receiver and accuracy

AccuracyPlus or minus 1 in (2.5 cm) RTK positioning
CorrectionsRTK, PPP and SBAS
RTK setupShips set up on NTRIP RTK; radio RTK also offered
Slowest steering0.09 mph (0.15 km/h)
Terrain compensationYes, built into the receiver

Steering motor

Voltage12 or 24 V
Wheel16.1 in (410 mm) or 15.0 in (380 mm), depending on kit
Seal ratingIP65

Power

System input9 to 36 V DC
Receiver drawUnder 300 mA

Weather and temperature

Receiver working-4 to 158 deg F (-20 to 70 C)
Receiver storage-40 to 185 deg F (-40 to 85 C)
Tablet storage-4 to 158 deg F (-20 to 70 C)
Seal ratingsReceiver IP67, motor IP65

Connections

Tablet wireless4G cell, 2.4 GHz Wi-Fi, Bluetooth 5.0
ISOBUSNot offered on this kit

Software

Guidance linesAB, A+, curve, pivot, shifted lines, tramlines, AccessPath, single line
Line entrySmart Turn-In at up to 90 deg
SetupPick your tractor profile, automatic tuning
Path AssistNot offered on the AT2 Lite

Not sure which numbers matter for your tractor? Ask us and we will go over them with you.

AT2 Lite, AT2, AT2 Max and AT2 Ultra side by side

Slide the chart sideways to see every column.

AT2 LiteAT2AT2 MaxAT2 Ultra
Screen10 in tablet10.1 in12.1 in16 in
Resolution1280 x 8001280 x 8001280 x 8001920 x 1200
Memory (RAM)4 GB2 GB or 4 GB, by version4 GB4 GB
Split-screen windowsAsk usUp to 3Up to 4Up to 5
Wired camera inputsAsk usNewer versions12
ISOBUS implement controlNot offered on this kitYes, with ISOBUS cableYes, with ISOBUS cableYes
TC-GEO, TC-SC, AUX-NNot offered on this kitOptional upgradeOptional upgradeIncluded
Automatic U-turnAsk usOptional upgradeOptional upgradeIncluded
Multi-machine syncAsk usOptional upgradeOptional upgradeIncluded
Steer-ready CAN and hydraulicAsk usOptional upgradeOptional upgradeSoftware unlocked; machine hardware separate

Optional upgrade means a function we can add and activate for you. Ask us which ones fit your machine.


At a glance

AccuracyPlus or minus 1 in (2.5 cm) with RTK
Display10 in rugged Android tablet
Slowest steering0.09 mph (0.15 km/h)
Tablet weightUnder 1.8 lb (0.8 kg)
Line entrySmart Turn-In at up to 90 deg
ISOBUSNot offered on this kit

Compatibility

The AT2 Lite is designed for compatible agricultural machinery and older tractors that can be retrofitted with the system. Exact tractor and steering compatibility should be confirmed with DST before ordering.

Not sure it fits your equipment? Send us the make, model and year and we will tell you straight.


Common questions

Is the AT2 Lite a steering motor kit for a Kubota, Case IH or John Deere tractor?

Yes. The AT2 Lite is an electric steering wheel motor kit. The motor bolts to the steering column with a bracket and spline matched to your tractor and turns the wheel; the receiver on the roof and the display do the rest. We put it on Kubota, Case IH, John Deere, New Holland, Ford, Massey Ferguson, Fendt, Versatile and anything else with power steering, steer-ready or not. Pick your brand on this page for the model-by-model fit, or text (580) 394-0089 with the make, model and year.

Is the AT2 Lite a full implement-control system?

The AT2 Lite is the steering-only entry tier in the FJD autosteering lineup.

How accurate is the AT2 Lite?

About 1 inch (2.5 cm) with RTK.

What happens if the RTK signal drops out?

After ALS is activated, the system can maintain navigation continuity for 20 minutes. If RTK is still unavailable, it transitions to PPP mode and switches back to RTK when the signal returns. Call DST if you need help checking signal coverage for your operation.
