AS2 Steer Ready Autosteering
AS2 Steer Ready Autosteering

Autosteering & Guidance

AS2 Steer Ready Autosteering

Plug-in autosteering for steer-ready tractors

The FJD AS2 connects to a steer-ready tractor’s existing system and controls the factory hydraulic valves from the cab. It provides 2.5 cm RTK accuracy, a 12-inch display, and a plug-and-play setup with minimal changes to the tractor. DST supports US farmers by phone and can provide remote installation help.

Best for: Farmers with a steer-ready tractor who want RTK guidance without replacing the steering wheel or adding a hydraulic valve.

For sale and in stock. Ships to the farm anywhere in the US, set up with you on the phone. Two-year warranty. Ask for a quote or call or text (580) 394-0089.

Talk To Farm Experts Call or Text (580) 394-0089
AS2 display and roof GNSS receiver

What the FJD AS2 does for you

Uses Existing Tractor Hardware

The AS2 is designed for steer-ready vehicles. It keeps the original steering wheel and uses the factory-installed hydraulic valve.

Plug-And-Play Setup

The system uses one control terminal and a GNSS receiver.

12-Inch Touchscreen

The high-definition display gives you a larger view for guidance and supports split-screen operation.

RTK-Level Guidance

The AS2 provides 2.5 cm RTK accuracy and keeps the steering wheel stationary while the system steers.

Guidance Line Options

The system supports multiple guidance line options, automatic U-turns, and GIS information transfer.

Farm Management Integration

The AS2 can connect with a Farm Management System to receive planned tasks such as field boundaries and guidance paths.

Which tractors does the FJD AS2 go on?

Pick your tractor brand for the model-by-model fit, or send us the make, model and year.

The AS2 up close

The AS2 is the short kit: a display, a roof receiver and the harness that plugs into your tractor. Deep Sand Technology is an authorized FJDynamics dealer. We sell, set up and support the FJD AS2 for farms in all 50 states.

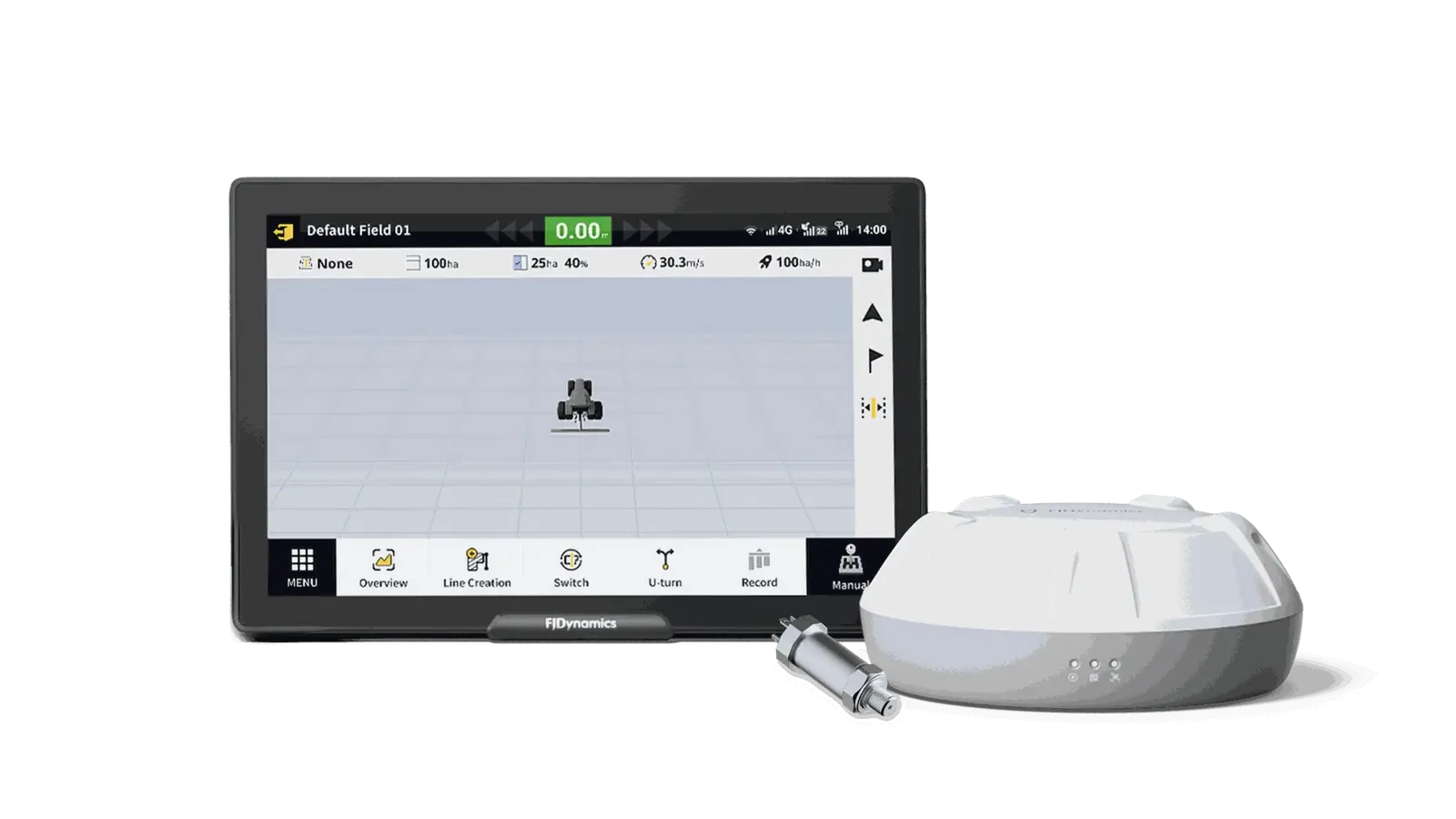

AS2 cab display with the guidance screen on, next to the white roof GNSS receiver
The AS2 kit: display and receiverThese are the two main pieces. The display mounts in the cab and the receiver goes on the roof. There is no steering motor and no valve to add.

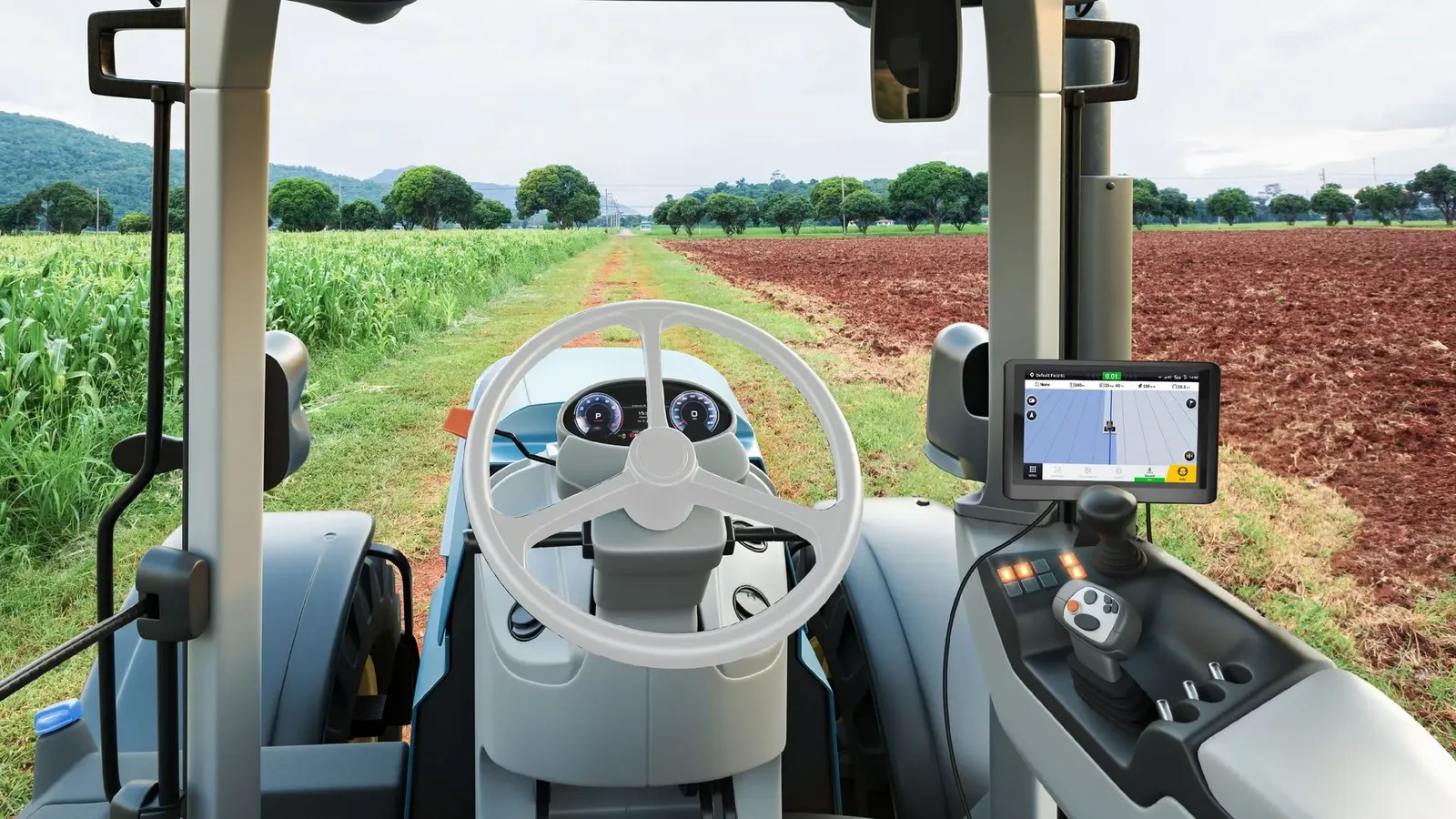

View from the seat of a steer-ready tractor with the factory steering wheel in place and the AS2 display mounted on the right
Your factory wheel staysThe AS2 steers through the tractor's own steering system, so nothing bolts onto the column.

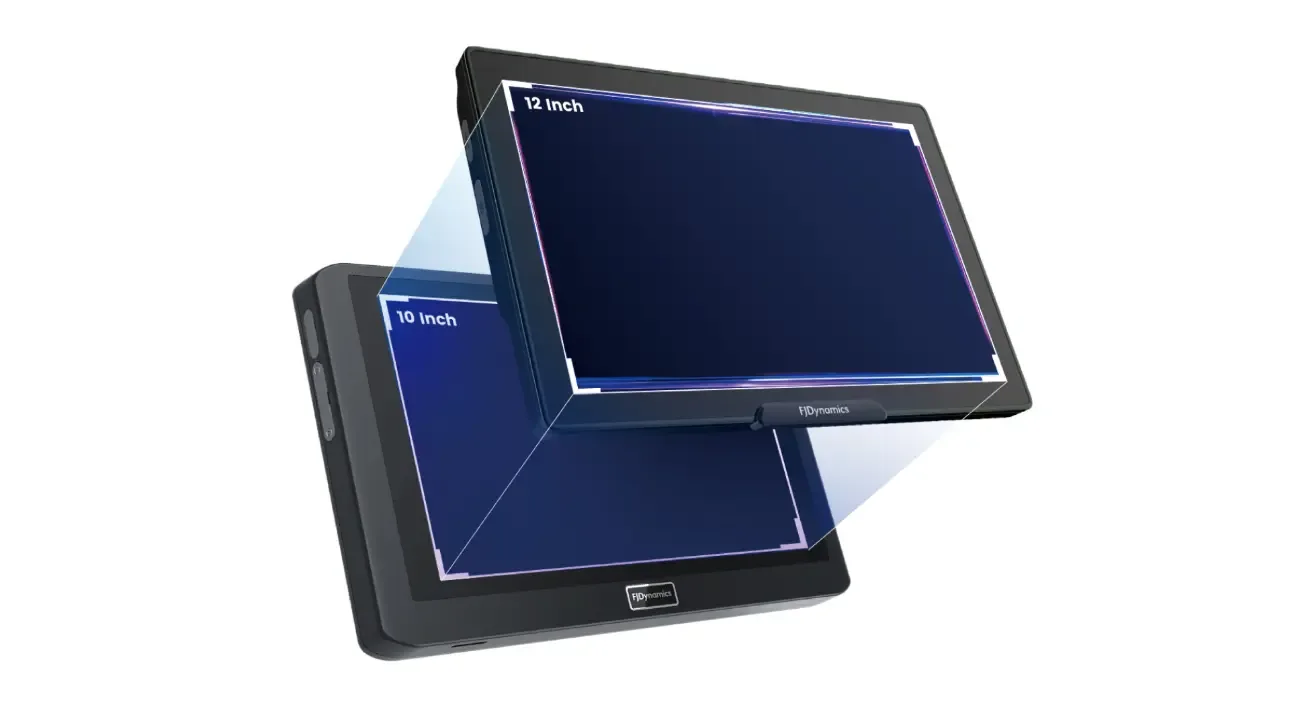

The 10-inch and 12-inch AS2 displays shown one behind the other
Two screen sizesPick the 10-inch display or the 12-inch. The 12-inch has room for split screen.
12-inch AS2 display with the roof GNSS receiver
With the 12-inch displayThe 12-inch AS2 Max display shown with its roof receiver.
Tractor steering hydraulics with a crossed-out add-on valve
No valve to plumb inA steer-ready tractor already has its steering valve from the factory. The AS2 talks to it over the tractor's wiring.

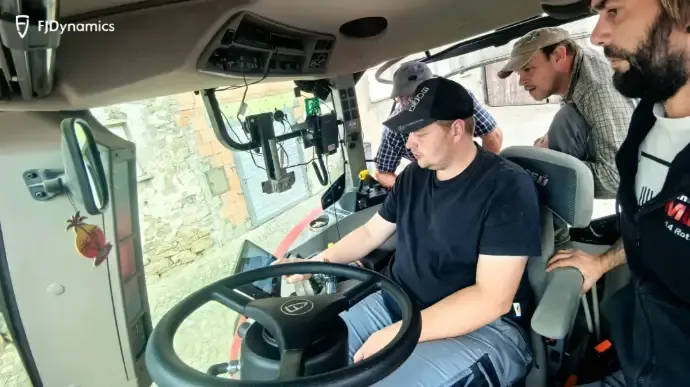

Operator turning the steering wheel to take over from auto steering
Taking the wheel backOn supported tractors, turning the wheel drops it out of auto steering. We go over how your tractor hands control back during setup.
Diagrams of straight, curved, pivot and headland guidance lines
Guidance linesStraight, curve, A+, pivot, headland, tramline and diagonal harrowing lines.
A combine, a row-crop tractor and a tractor with a sprayer boom
For steer-ready machinesTractors, combines and sprayers that left the factory guidance-ready. Send us the make, model and year and we will check yours.

Tap any picture to see it full size.


What comes in the AS2 kit

Here is what we ship in an AS2 kit. The harness that plugs into your tractor is matched to the machine.

The 10-inch and 12-inch AS2 displays

Cab touchscreen

Choose a 10-inch or 12-inch screen. It shows your guidance line and sends steering commands to the tractor.

AS2 display with the white roof GNSS receiver beside it

Roof GNSS receiver

Uses satellite signals to locate the tractor as you work.

Spare main harness in its bag

Spare main harness

A second main harness that comes in the kit.

Coiled GNSS receiver harness

Receiver harness

Connects the roof receiver to the wiring in the cab.

Ball-mount display bracket with its base plates

Cab screen bracket

Holds the touchscreen in place in the cab.

Main cab harness

Connects the display to power, the receiver and the tractor steering network.

What changes with your tractor

The tractor must already have a supported factory steering CAN connection and hydraulic steering valve. The machine-side plug, harness and receiver mount depend on the tractor, and some setups need a separate angle sensor. You keep the factory wheel and valve.

What we add, and your options

Every kit we ship also comes with RTK activation, a SIM card with a one-year data plan and setup help by phone. Options: engage switch, remote, camera and ISOBUS hardware. The AS2 uses your factory steering, so there is no wheel motor or valve to add.

RTK corrections

We offer both radio and NTRIP RTK. Every system ships set up on NTRIP RTK.


Video: AS2 in 30 seconds

The FJD AS2 is an auto steer system for steer-ready tractors. It plugs right into your tractor, so you keep your factory steering wheel.

What the video shows

  • Plugs right into your tractor
  • Keeps your factory steering wheel
  • Pick your screen: 10-inch, 12-inch Max or 16-inch Ultra
  • 1-inch accuracy
  • Terrain compensation
  • Auto turn available
  • ISOBUS implement control
  • Section and rate control
  • Two-year warranty
  • One-year buy-back guarantee

What is a steer-ready tractor?

A tractor that came from the factory set up for auto steer. The AS2 plugs right into it. Not sure if yours is steer-ready? Call or text us and we will look it up.

Which screen does the AS2 use?

Your choice of the 10-inch display, the 12-inch Max or the 16-inch Ultra.

Watch on YouTube  |  More videos from Deep Sand Tech


AS2 specifications

Display

Screen options10-inch or 12-inch
Split screen12-inch version
12-inch case11.42 x 7.72 x 0.98 in (290 x 196 x 25 mm)

Receiver and accuracy

RTK ratingUp to 1 in (2.5 cm) with network RTK or a base station
Other correctionsPPP and SBAS, rated at decimeter level
RTK setupShips set up on NTRIP RTK; radio RTK also offered
Receiver size6.38 x 2.54 in (162 x 64.5 mm)
Satellite bandsGPS L1 C/A, L1C, L2P(W), L2C, L5; GLONASS L1/L2; BeiDou B1I/B2I/B3I/B1C/B2a; Galileo E1/E5a/E5b; QZSS L1/L2/L5

Steering

Steering controlCompatible factory hydraulic valve and steering electronics
Steering wheelFactory wheel stays in place

Power

Terminal input9-36 V DC
Power sourceCompatible in-cab supply

Weather and temperature

10-inch terminalIP65
12-inch terminalIP67
GNSS receiverIP66

Connections

Steering networkMachine-specific factory steering CAN
Cellular hardware4G, 3G and 2G; service varies by carrier

Software

Guidance linesStraight, curve, A+, pivot, headland, tramline and diagonal harrowing
Headland turnsBasic and Smart U-turn options; ask us about activation

Not sure which numbers matter for your tractor? Ask us and we will go over them with you.


At a glance

ConnectionSupported factory steering CAN
Steering valveUses the tractor's existing valve
Steering wheelKeeps the factory wheel
Screen10-inch or 12-inch
AccuracyUp to 1 in (2.5 cm) with RTK
Guidance linesStraight, curve, pivot and more

Compatibility

Designed for steer-ready agricultural machinery, including vehicles using CANBUS communications. Compatible model details should be confirmed with DST before ordering.

Not sure it fits your equipment? Send us the make, model and year and we will tell you straight.


Common questions

Do I need to replace my tractor’s steering wheel?

No. The AS2 is designed to keep the original steering wheel in place.

Do I need to install a hydraulic valve?

No. The system is intended to use the tractor’s factory-installed hydraulic valve. Call DST to confirm your tractor’s configuration.

Can DST help me install the system?

Yes. DST supports US farmers by phone and can provide remote installation support. Call DST to review your tractor before ordering.
