AT2 Autosteering System
AT2 Autosteering System

Autosteering & Guidance

AT2 Autosteering System

Keep the tractor on line and reduce skips, overlaps, and operator fatigue.

The FJD AT2 is an electric steering motor kit that adds RTK autosteering to any tractor, combine, sprayer or swather with power steering; the motor turns the wheel, so nothing is needed from the factory. With suitable RTK correction and proper calibration, it can reach up to ±2.5 cm accuracy and operate from 0.1–26 km/h. The system also supports terrain compensation, guidance-line planning, ISOBUS implement control, and automatic U-turns.

Best for: Farmers who want precise steering across planting, spraying, fertilizing, tillage, and harvest work.

For sale and in stock. Ships to the farm anywhere in the US, set up with you on the phone. Two-year warranty. Ask for a quote or call or text (580) 394-0089.

Talk To Farm Experts Call or Text (580) 394-0089
AT2 Autosteering System

What the FJD AT2 does for you

RTK-Level Steering Accuracy

With suitable RTK correction and proper calibration, AT2 autosteering accuracy can reach up to ±2.5 cm. This helps reduce skips and overlaps in field operations.

Works Across Field Speeds

AT2 supports working speeds from 0.1–26 km/h. That covers slower work such as potato planting and faster work such as crop protection and fertilizing.

Terrain Compensation

The system compensates for vehicle tilt on sloping or uneven ground to help maintain consistent steering performance.

Automatic U-Turns

AT2 can plan and guide turns at the end of rows, including Ω-shaped and fishtail-shaped paths. Automatic U-turn is a paid function.

ISOBUS Implement Control

Use one terminal to manage compatible ISOBUS implements. Tasks can be scheduled and executed through the system.

Field Data Transfer

AT2 supports straight-line, curve, A+ line, and pivot guidance modes. Field boundaries, guidance lines, and other information can be transferred by USB in standard GIS format or connected through the FJD FieldFusion farm management system.

Which tractors does the FJD AT2 go on?

Pick your tractor brand for the model-by-model fit, or send us the make, model and year.

The AT2 up close

The AT2 is three main parts: a steering wheel with the motor built in, a 10.1-inch display and a roof receiver. Deep Sand Technology is an authorized FJDynamics dealer. We sell, set up and support the FJD AT2 for farms in all 50 states.

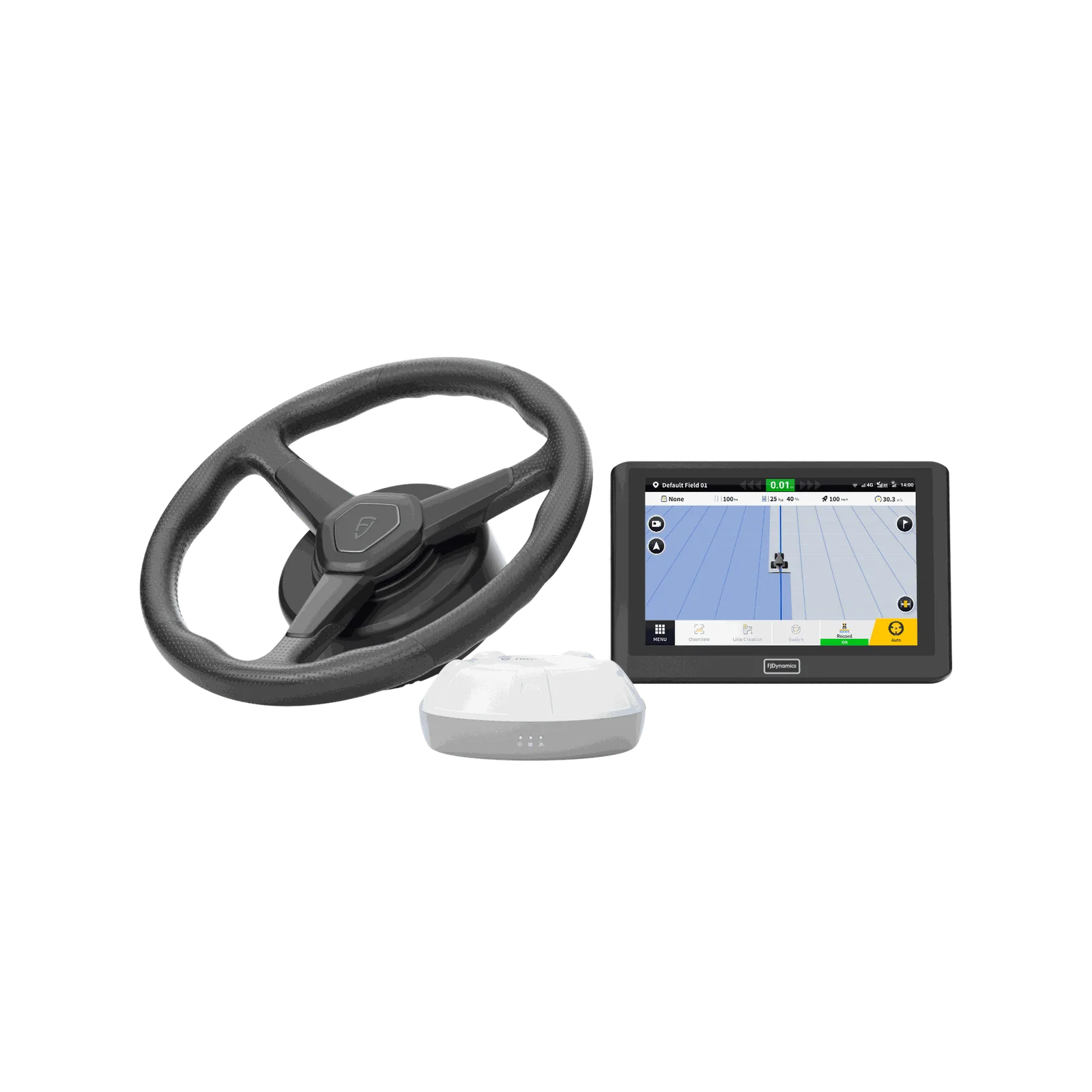

AT2 steering wheel with built-in motor, 10.1-inch display and white roof GNSS receiver
The AT2 kit: wheel, display and receiverThe steering wheel with its motor, the 10.1-inch display and the receiver that goes on the cab roof.
Tractor diagram labelling the GNSS receiver on the roof, the control terminal in the cab, the electric steering wheel and the angle sensor on the front axle
Where each part goesDisplay in the cab, receiver on the roof, motor on the steering column and the wheel angle sensor on the front axle.
AT2 steering wheel with the motor in the hub
Steering motor and wheelThis replaces your factory wheel. The motor in the hub turns the column for you, on 12 or 24 volt tractors.
White roof GNSS receiver
Roof receiverReads satellite position and RTK corrections. Terrain compensation is built in to help make up for tractor tilt on side hills.
AT2 display showing guidance lines over a tractor working a field
The 10.1-inch displayShows your lines, your speed and how far you are off line. 1280 x 800 at 700 nits, so it reads in daylight.
Tractor planting with the AT2 screen shown above it
Steering while you plantThe AT2 follows your guidance line. You stay in the seat and keep an eye on the steering and the planter. Rated to plus or minus 1 in (2.5 cm) with RTK and proper calibration.
Straight, curved, pivot and A+ guidance lines drawn over fields
Line typesStraight AB lines, curves, pivot circles and A+ lines.
Tractor in a field with RTK, PPP and SBAS signals shown overhead
RTK, PPP and SBASRTK corrections give the best accuracy. The AT2 can also use PPP and SBAS.
Sprayer working a field with the implement screen shown on the AT2 display
Running your implementAdd the ISOBUS cable and run a compatible ISOBUS implement from the same display.

Tap any picture to see it full size.


What comes in the AT2 kit

Here is what we ship in an AT2 kit.

AT2 steering wheel with the motor in the hub

Steering motor and wheel

Replaces your steering wheel. The motor inside turns the column so the tractor steers itself. Works on 12 or 24 volt tractors; the wheel is 16.1 in or 15.0 in depending on kit.

AT2 10.1-inch display showing a guidance line

10.1-inch display

The touchscreen you run steering, guidance lines and ISOBUS from. 1280 x 800 screen at 700 nits, so it reads in daylight.

Ball-mount display bracket with its base plates

Display mount

Bracket and mounting base that clamp the display to the armrest or a cab rail and let you angle it.

White FJDynamics roof GNSS receiver

GNSS receiver

The globe on the cab roof. It reads satellite position and RTK corrections and has terrain compensation built in to help make up for tractor tilt on side hills.

Wheel angle sensor on its bracket with its lead

Wheel angle sensor and leads

The sensor mounts on the front axle and tells the system how far the wheels are turned. It comes with its harness and an extension lead to reach the cab.

Main wiring harness, coiled

Harness set

Main wiring harness, spare main harness, GNSS receiver harness and power harness, one of each. Power comes straight off the tractor battery.

Roof brackets for the GNSS receiver

Roof mount set

Two antenna brackets with bolts, self-drilling screws and adhesive pads to fix the receiver on the cab roof.

Mounting hardware and paperwork

Screws, washers, nameplate, 20 cable ties, certificate, warranty card and user manual.

What changes with your tractor

The spline adapter and motor bracket are matched to your tractor's steering column and come in our adapter kit. The angle sensor bracket is picked for your front axle, and a few machines run without the sensor.

What we add, and your options

Every kit we ship also comes with a SIM card with a one-year data plan, RTK activation before it ships, and setup help by phone. Options: ISOBUS cable, NMEA cable, Bluetooth remote (Easy Control), foot switch, wired or Wi-Fi camera, and the automatic U-turn activation.

RTK corrections

We offer both radio and NTRIP RTK. Every system ships set up on NTRIP RTK.


Video: AT2 in 30 seconds

The FJD AT2 is an auto steer system for tractors with a 10-inch HD display. It steers the tractor and runs your implement through ISOBUS, with section and rate control.

What the video shows

  • 1-inch accuracy
  • Terrain compensation
  • Auto turn available
  • 10-inch HD display
  • ISOBUS implement control
  • Section and rate control
  • Two-year warranty
  • One-year buy-back guarantee

What is the difference between the AT2 and the AT2 Max?

Both steer to 1-inch accuracy and run implements through ISOBUS. The AT2 uses a 10-inch HD display. The AT2 Max uses a 12-inch display with 46% more visible area and 170% more computing power.

What warranty comes with the AT2?

A two-year warranty and a one-year buy-back guarantee.

Watch on YouTube  |  More videos from Deep Sand Tech


AT2 specifications

Display

Screen10.1 in touchscreen, 1280 x 800
Brightness700 nits
Memory2 GB or 4 GB RAM by version, 8 GB storage

Receiver and accuracy

SatellitesGPS, GLONASS, BeiDou, Galileo, QZSS, multi-band
CorrectionsRTK, PPP and SBAS
RTK setupShips set up on NTRIP RTK; radio RTK also offered
AccuracyRated to plus or minus 1 in (2.5 cm) with RTK and proper calibration
Working speed0.06 to 16 mph (0.1 to 26 km/h)
Terrain compensationYes, built into the receiver
Receiver size6.4 x 2.5 in (162 x 64.5 mm)

Steering motor

Voltage12 or 24 V
410 mm wheel14.8 ft-lb (20 Nm) at 12 V, 22.1 ft-lb (30 Nm) at 24 V
380 mm wheel11.1 ft-lb (15 Nm) at 12 V, 14.8 ft-lb (20 Nm) at 24 V
Seal ratingIP65

Sensors

Roll and pitch0.2 deg (IMU in the receiver)
Gyro0.1 deg per second
Wheel angle sensorUp to 200 Hz, under 0.1 deg resolution, IP67

Power

Display and receiver9 to 36 V DC
Receiver drawUnder 300 mA

Weather and temperature

Working-4 to 158 deg F (-20 to 70 C)
Storage-40 to 185 deg F (-40 to 85 C)
Humidity0 to 95% at 104 deg F (40 C), non-condensing
Receiver sealIP66

Connections

Cell4G LTE, micro-SIM
Wi-Fi2.4 GHz
ISOBUSVirtual terminal and task controller, with ISOBUS cable

Software

Guidance linesStraight AB, A+, curve, pivot, tramlines, boundary lines
Automatic U-turnSmart, omega and fishtail turns; optional activation
Field dataUSB in standard GIS format, FieldFusion sync
Path AssistSupported on compatible AT2 setups

Not sure which numbers matter for your tractor? Ask us and we will go over them with you.

AT2 Lite, AT2, AT2 Max and AT2 Ultra side by side

Slide the chart sideways to see every column.

AT2 LiteAT2AT2 MaxAT2 Ultra
Screen10 in tablet10.1 in12.1 in16 in
Resolution1280 x 8001280 x 8001280 x 8001920 x 1200
Memory (RAM)4 GB2 GB or 4 GB, by version4 GB4 GB
Split-screen windowsAsk usUp to 3Up to 4Up to 5
Wired camera inputsAsk usNewer versions12
ISOBUS implement controlNot offered on this kitYes, with ISOBUS cableYes, with ISOBUS cableYes
TC-GEO, TC-SC, AUX-NNot offered on this kitOptional upgradeOptional upgradeIncluded
Automatic U-turnAsk usOptional upgradeOptional upgradeIncluded
Multi-machine syncAsk usOptional upgradeOptional upgradeIncluded
Steer-ready CAN and hydraulicAsk usOptional upgradeOptional upgradeSoftware unlocked; machine hardware separate

Optional upgrade means a function we can add and activate for you. Ask us which ones fit your machine.


At a glance

Display10.1 in touchscreen, 700 nits
AccuracyRated to plus or minus 1 in (2.5 cm) with RTK
Working speed0.06 to 16 mph (0.1 to 26 km/h)
CorrectionsRTK, PPP and SBAS
Implement controlISOBUS, with ISOBUS cable
Automatic U-turnAvailable, optional activation
Field dataUSB GIS files and FieldFusion

Compatibility

The AT2 fits a wide range of farm machinery and runs ISOBUS-compatible implements. We check your tractor and implement before you order, and we help with the install by phone and remote support.

Not sure it fits your equipment? Send us the make, model and year and we will tell you straight.


Common questions

Is the AT2 a steering motor kit for a Kubota, Case IH or John Deere tractor?

Yes. The AT2 is an electric steering wheel motor kit. The motor bolts to the steering column with a bracket and spline matched to your tractor and turns the wheel; the receiver on the roof and the display do the rest. We put it on Kubota, Case IH, John Deere, New Holland, Ford, Massey Ferguson, Fendt, Versatile and anything else with power steering, steer-ready or not. Pick your brand on this page for the model-by-model fit, or text (580) 394-0089 with the make, model and year.

What accuracy can the FJD AT2 provide?

With suitable RTK correction and proper system calibration, autosteering accuracy can reach up to ±2.5 cm. Actual results depend on operating conditions and correction-signal setup.

Can I use the AT2 without an RTK internet connection?

The system supports PPP and SBAS correction signals, which give decimeter-level accuracy without internet constraints. Call DST to review the correction option that fits your farm.

Will the AT2 work with my tractor and implement?

Most likely. The AT2 fits a wide range of farm machinery and runs ISOBUS-compatible implements. Send us your make, model and year and we will check it before you order.
