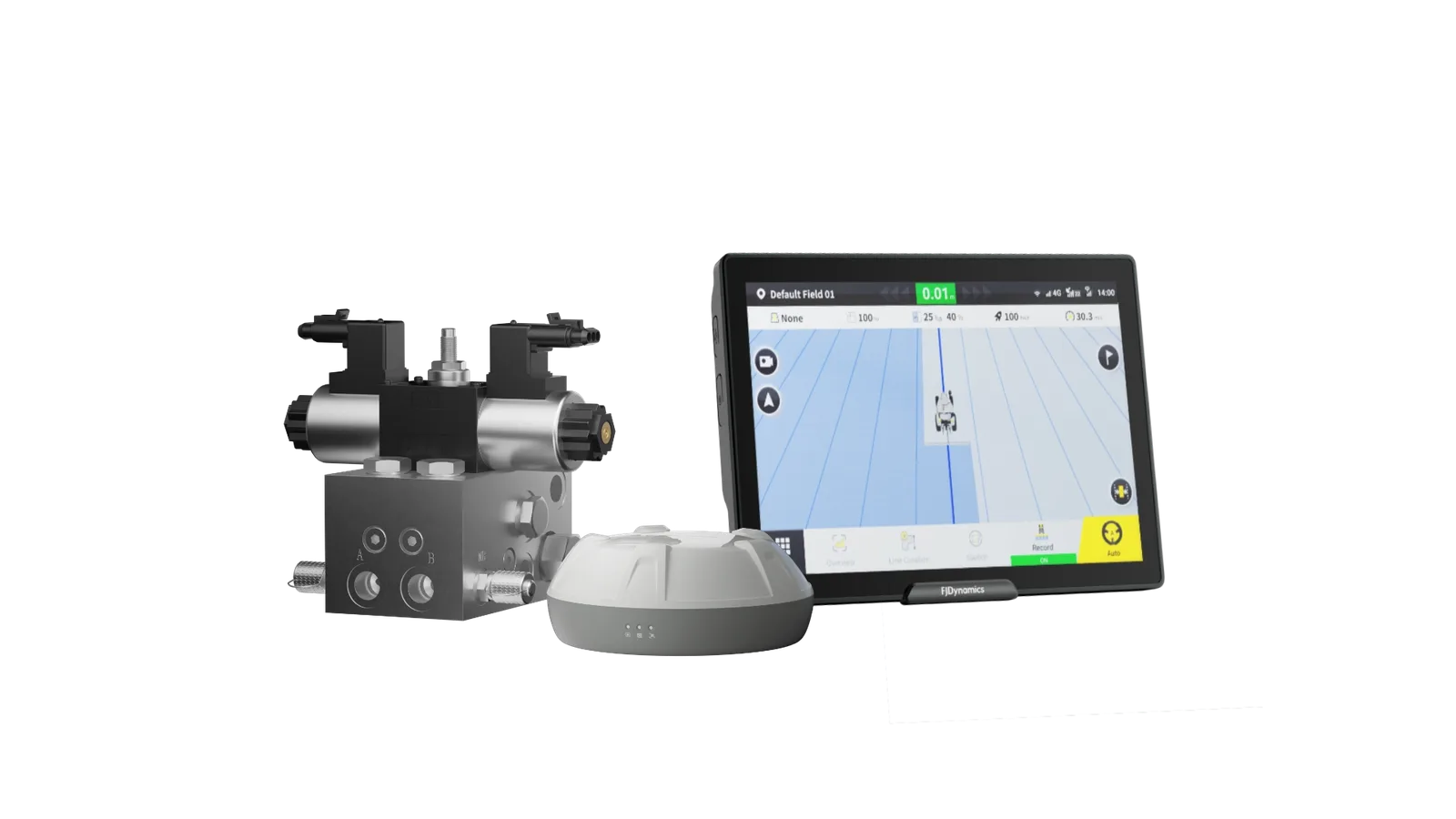

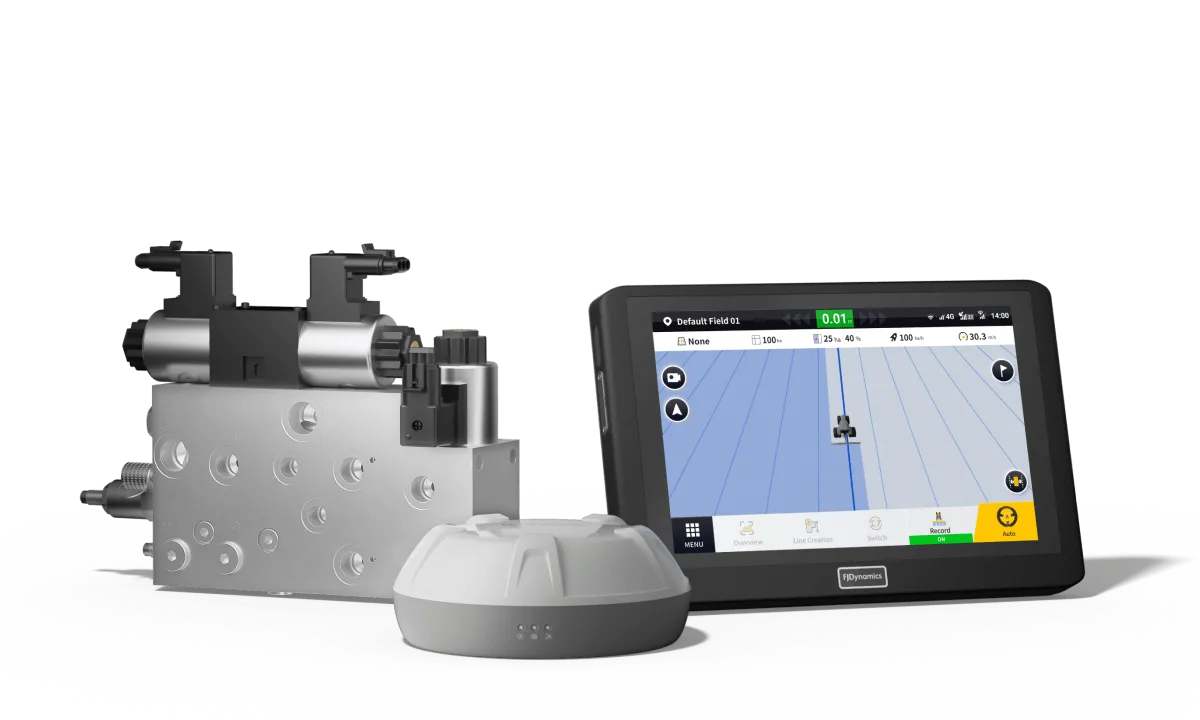

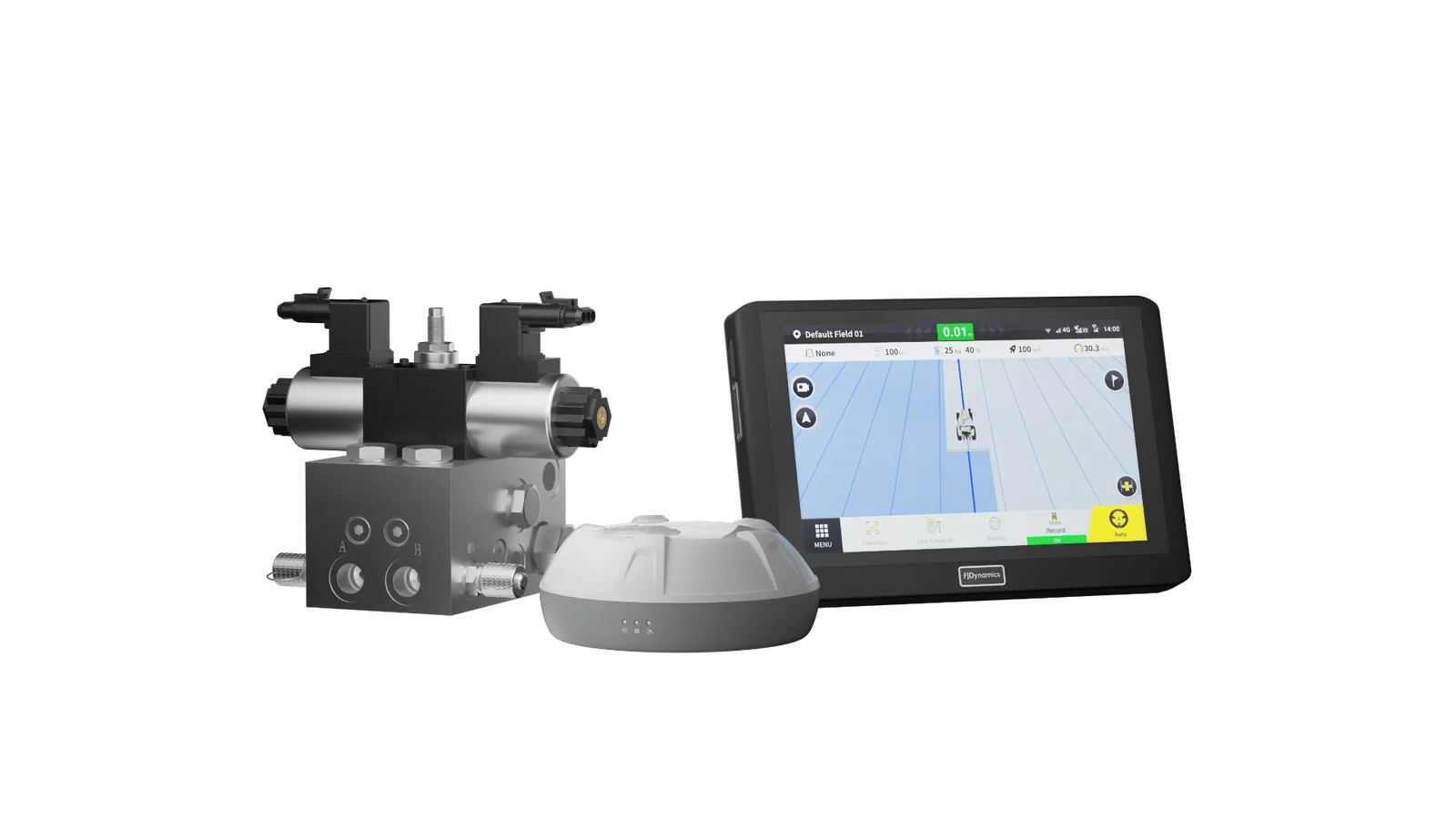

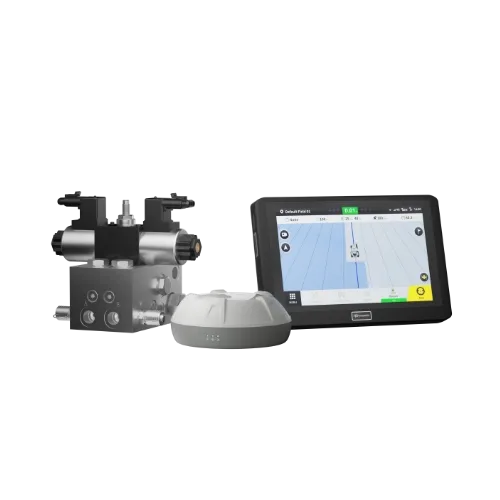

AH2 / AH2 Max Hydraulic Autosteering
Hydraulic steering control without replacing your steering wheel

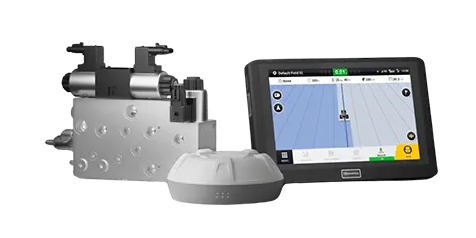

The FJDynamics (FJD) Hydraulic Autosteering Kit uses your tractor’s hydraulic system to provide automated steering while keeping the original steering wheel in place. It delivers 2.5 cm steering accuracy and supports guidance lines, automatic U-turns, and operation across rolling ground, slopes, and rough terrain.
Best for: Farmers who need stable, precise steering on high-horsepower tractors and challenging terrain.
For sale and in stock. Ships to the farm anywhere in the US, set up with you on the phone. Two-year warranty. Ask for a quote or call or text (580) 394-0089.
Talk To Farm Experts Call or Text (580) 394-0089

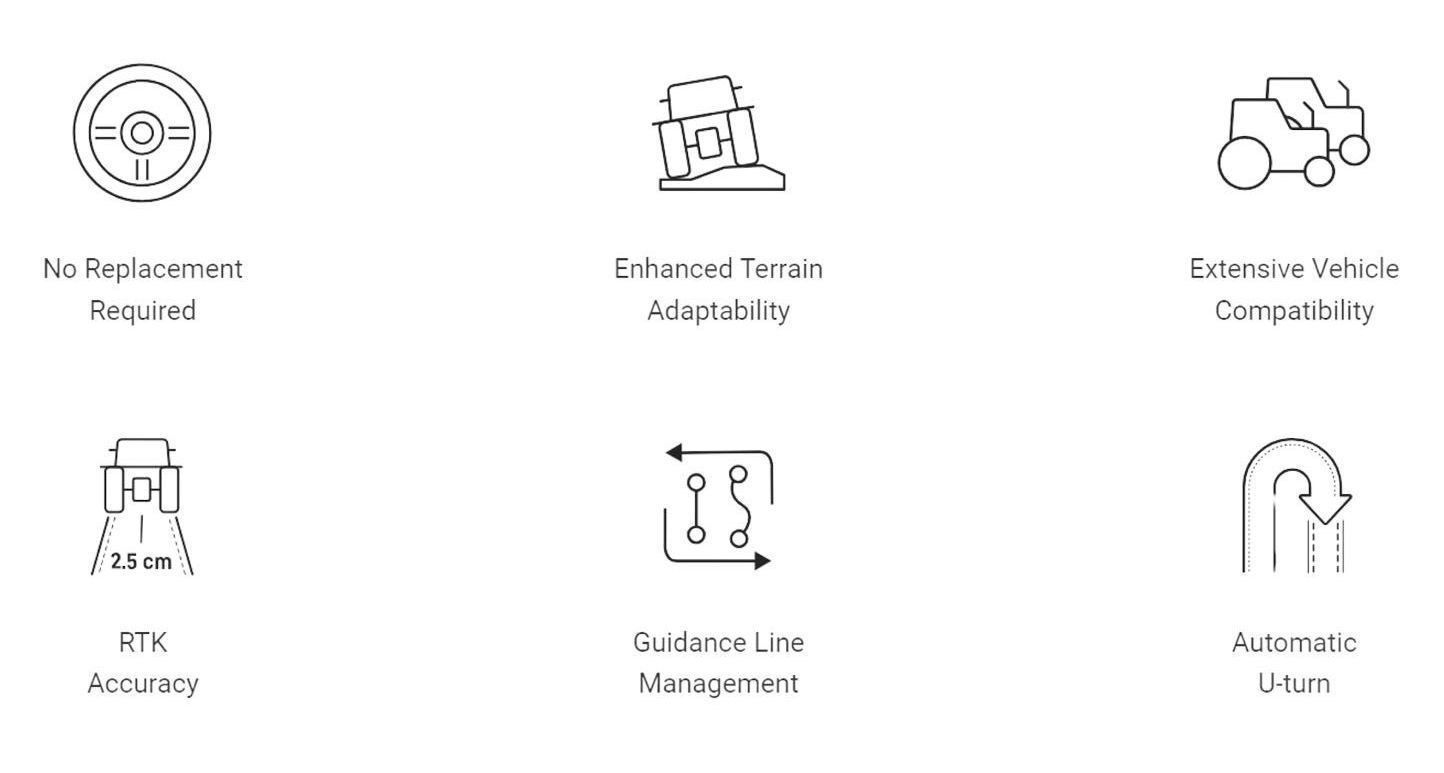

What the FJD Hydraulic Autosteering Kit does for you

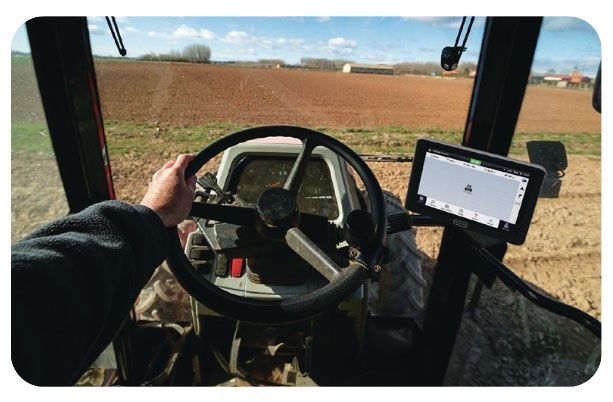

Keep Your Steering Wheel
The kit integrates with the tractor’s original steering wheel. No steering wheel replacement is required.
Precise Hydraulic Control
Hydraulic oil regulation provides automated steering control with 2.5 cm steering accuracy.
Built For Tough Terrain
The system is designed to maintain steering stability on rolling terrain, slopes, and rough ground.
Automatic U-Turns
Smart U-turn plans paths for headlands and row ends. Basic U-turn provides Ω and fishtail turnaround shapes.
Wide Tractor Compatibility
Four compact hydraulic valve options support different fluid types and both open-center and closed-center hydraulic systems. FJD says the system works with over 95% of vehicles, especially high-horsepower tractors.
Connects With FMS
The kit can synchronize with a Farm Management System for planned tasks such as setting boundary lines and guidance paths.
Which tractors does the FJD Hydraulic Autosteering Kit go on?
Pick your tractor brand for the model-by-model fit, or send us the make, model and year.





Video: AH2 in 30 seconds
The FJD AH2 is a hydraulic auto steer system for tractors. It steers through a hydraulic valve, so you keep your factory steering wheel.
What the video shows
- Steers through a hydraulic valve
- Keeps your factory steering wheel

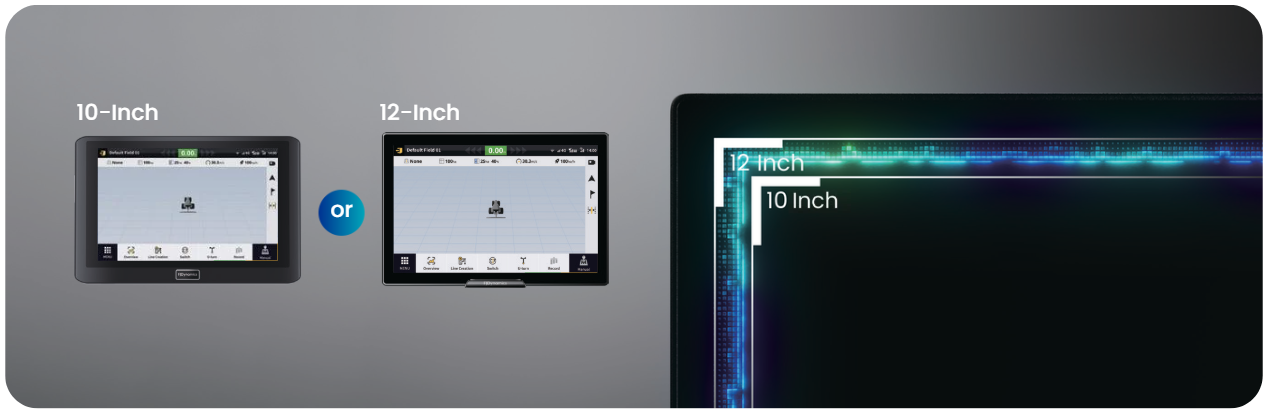

- Pick your screen: 10-inch, 12-inch Max or 16-inch Ultra
- 1-inch accuracy
- Terrain compensation
- Auto turn available
- ISOBUS implement control
- Section and rate control
- Two-year warranty
- One-year buy-back guarantee
How does the AH2 steer the tractor?
Through a hydraulic valve, so your factory steering wheel stays in place.

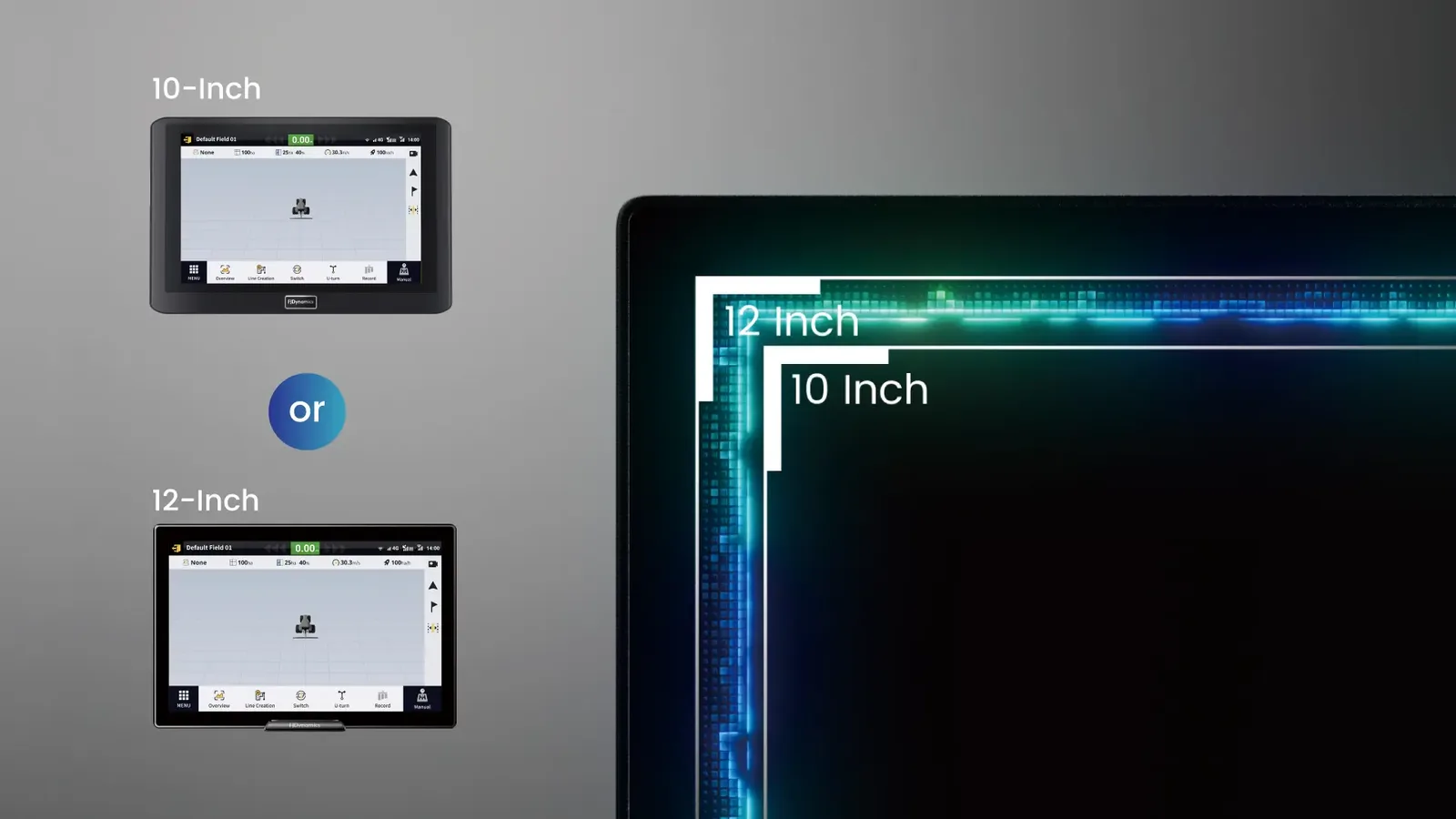

Which screen does the AH2 use?
Your choice of the 10-inch display, the 12-inch Max or the 16-inch Ultra.
Hydraulic auto steer system or a motor on the wheel?
FJD steers a tractor two ways. The AT2 family puts an electric motor on the steering column and turns the wheel. The AH2 is a hydraulic auto steer system: it runs the tractor's steering valve directly, with a pressure sensor and a wheel angle sensor telling the controller what the front wheels are doing. Both hold the same RTK line. The question is which one belongs on your tractor.
Where we put the AH2
- Tractors that already have a guidance valve but no CAN steering. Guidance-ready Magnums, Pumas and Maxxums from before CAN carry an Eaton valve, and guidance-ready Steigers and STX tractors drive theirs with a voltage signal, not CAN. The AH2 runs that valve. On Steigers it takes a new valve head and two plug changes.
- Farmers who want the steering wheel left untouched. Nothing is bolted to the column, the wheel stays exactly as it was, and the valve holds the line. That goes for a Magnum as much as a 9230 Steiger, which has run on the AH2 lock to lock once the angle sensor was set right. See autosteer for articulated 4WDs.
- Tractors with no valve at all where the owner wants hydraulic steering anyway. Any tractor with power steering can have a steering valve added, and the big 4WDs have the pump capacity for it. Most of those farmers run the motor kit instead, because it is simpler and it moves to another tractor, and that is fine too.
Where the motor kit is the better answer
Any tractor with power steering and no factory autosteer. The AT2 Lite, AT2, AT2 Max and AT2 Ultra bolt to the column with a model-specific bracket, and most farmers install one in an afternoon with our tech on the phone. That is the kit on most of the older tractors we steer.
And if the tractor is steer-ready with CAN
Then neither. The AS2 plugs into the factory connector. Is my tractor steer-ready? shows how to tell in ten minutes. If you would rather not guess, text us the model and serial number at (580) 394-0089 and we will tell you which of the three it is.
At a glance
| Control terminal dimensions | 275 × 180 × 40 mm |
|---|---|
| Control terminal power supply | 9–36 V |
| Network module | 4G, 3G, 2G |
| Control terminal IP rating | IP65 |
| Pressure sensor thread | G 1/4 external thread |
| Pressure sensor output | 0–5 V DC |
| Pressure sensor range | 3000 psi |
| Angle sensor IP rating | IP67 |
| Angle sensor operating temperature | -40°C to +85°C |
| GNSS receiver dimensions | 162 × 64.5 mm |
| GNSS receiver frequencies | GPS: L1C/A, L1C, L2P(W), L2C, L5; GLONASS: L1, L2; BDS: B1I, B2I, B3I, B1C, B2a; Galileo: E1, E5a, E5b; QZSS: L1, L2, L5 |
| GNSS receiver IP rating | IP66 |
| Proportional valve rated oil flow | 30 L/min; 60 L/min |
| Proportional valve input voltage | 12 V |
| Proportional valve type | Open center; closed center |
Compatibility
The kit is intended for a wide range of tractors, including high-horsepower models, and supports open-center and closed-center hydraulic systems through multiple valve options. Call Deep Sand Technology to confirm the correct valve and installation approach for your tractor; remote install support is available.
Not sure it fits your equipment? Send us the make, model and year and we will tell you straight.
Common questions
Will I have to remove my tractor’s steering wheel?
No. The kit is designed to work with the tractor’s original steering wheel.
Can it work with my tractor’s hydraulic system?
The system supports open-center and closed-center hydraulic systems and different fluid types. FJD says it works with over 95% of vehicles, but the correct valve must be confirmed for your tractor. Call DST for help.
What does the kit include for automatic turns?
It supports Smart U-turn and Basic U-turn functions. Smart U-turn plans a path for headlands, while Basic U-turn offers Ω and fishtail turnaround shapes.
